INVT GD200-037G/045P-4 - 220315 Kw Terminals of Main Circuit; 350500 Kw Terminals of Main Circuit

Goodrive200 inverters Installation guidelines
28

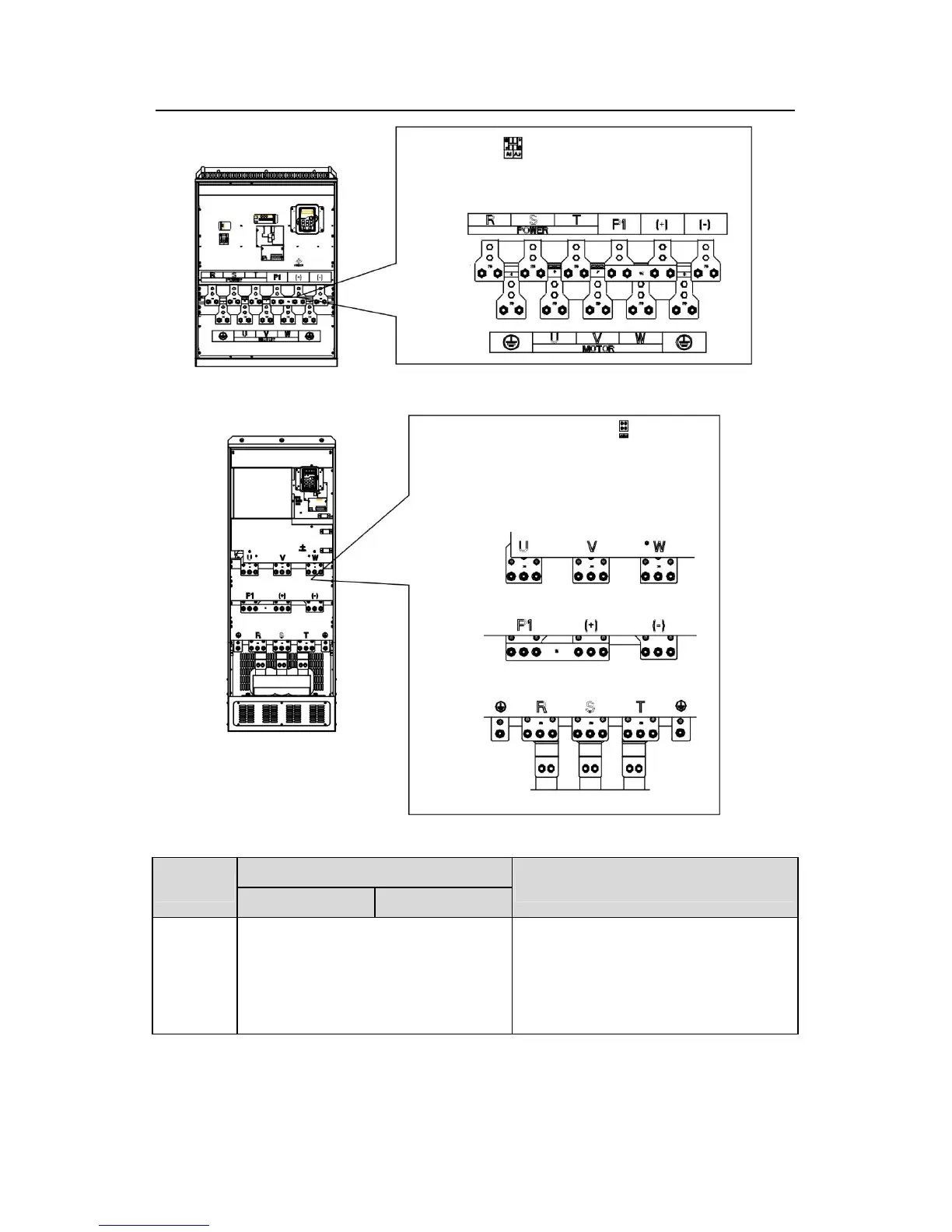

Fig 4-16 220~315kW terminals of main circuit
Fig 4-17 350~500kW terminals of main circuit
Terminal
Terminal name
Function
≤30kW ≥37kW
R, S, T
Power input of the main circuit
3-phase AC input terminals which are
generally connected with the power
supply.
