239

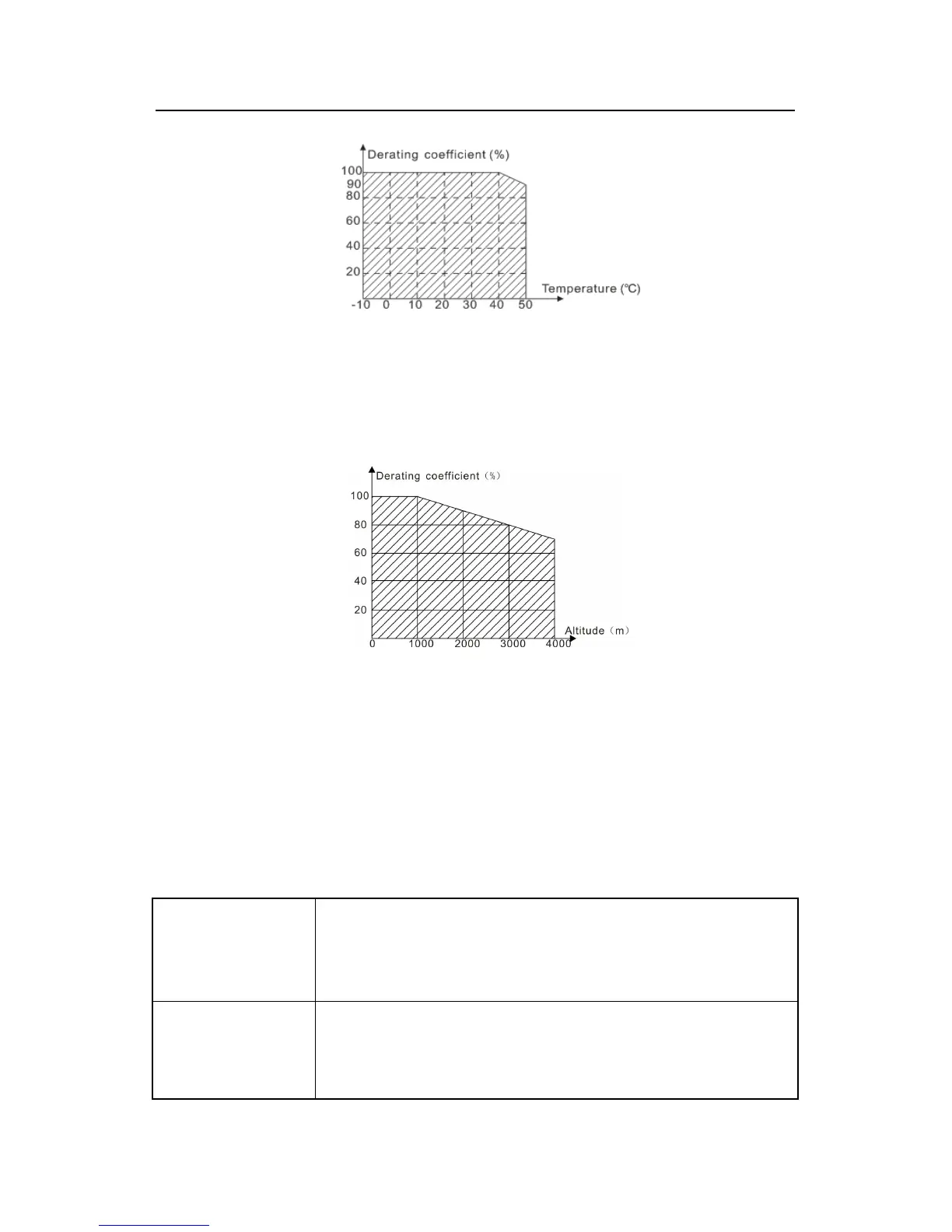

A.2.2.2 Altitude derating
The device can output rated power if the installation site below 1000m. The output power
decreases if the altitude exceeds 1000 meters. Below is the detailed decreasing range of the
derating:
For 3-phase 200 V drives, the maximum altitude is 3000m above sea level. In altitudes
2000…3000 m, the derating is 1% for every 100 m.
A.2.2.3 Carrier frequency derating
For Goodrive200 series inverters, different power level corresponds to different carrier
frequency range. The rated power of the inverter is based on the factory carrier frequency,
so if it is above the factory value, the inverter needs to derate 10% for every additional 1 kHz
carrier frequency.
A.3 Electric power network specification
Voltage
AC 3PH 220(-15%)~240(+10%)
AC 3PH 380(-15%)~440(+10%)
AC 3PH 520(-15%)~690(+10%)
Short-circuit
capacity
Maximum allowed prospective short-circuit current at the input
power connection as defined in IEC 60439-1 is 100 kA. The drive is
suitable for use in a circuit capable of delivering not more than 100
