INVT GD200-037G/045P-4 User Manual

Goodrive200 inverters
Appendix B
246
Model W1 W2 H1 H2 D1
Installation
hole
1.5kW~2.2kW 126 115 193 175 174.5
5
4kW~5.5kW 146 131 263 243.5 181 6
7.5kW~11kW 170 151 331.5 303.5 216
6
15kW~18.5kW
230 210 342 311 216
6
22kW~30kW 255 237 407 384 245 7
37kW~55kW 270 130 555 540 325
7
75kW~110kW 325 200 680 661 365 9.5
132kW~200kW
500 180 870 850 360
11
220kW~315kW
680 230 960 926 379.5 13

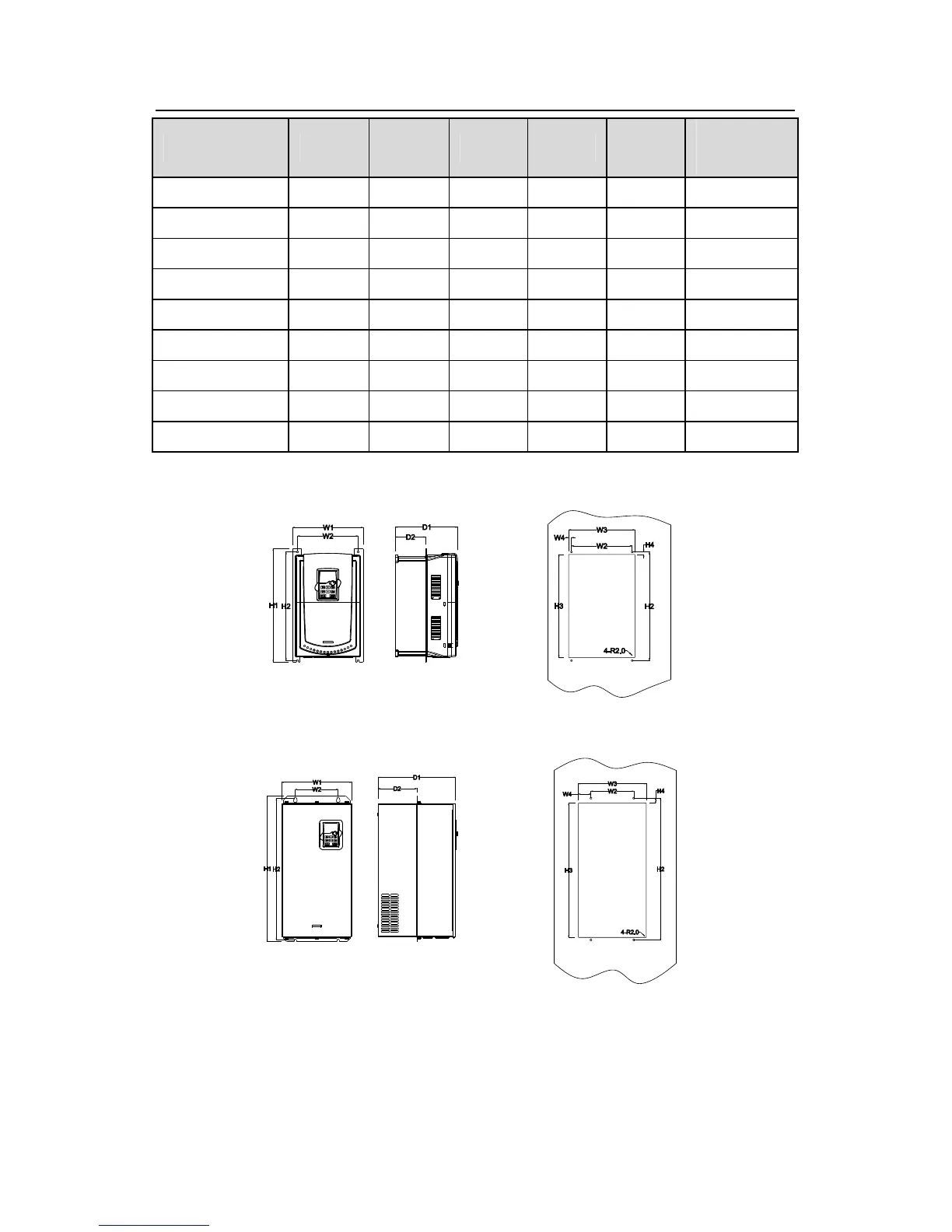

B.4.2 Flange mounting
1.5-30kW flange mounting
37-110kW flange mounting
