Goodrive200 inverters Basic operation instruction
195

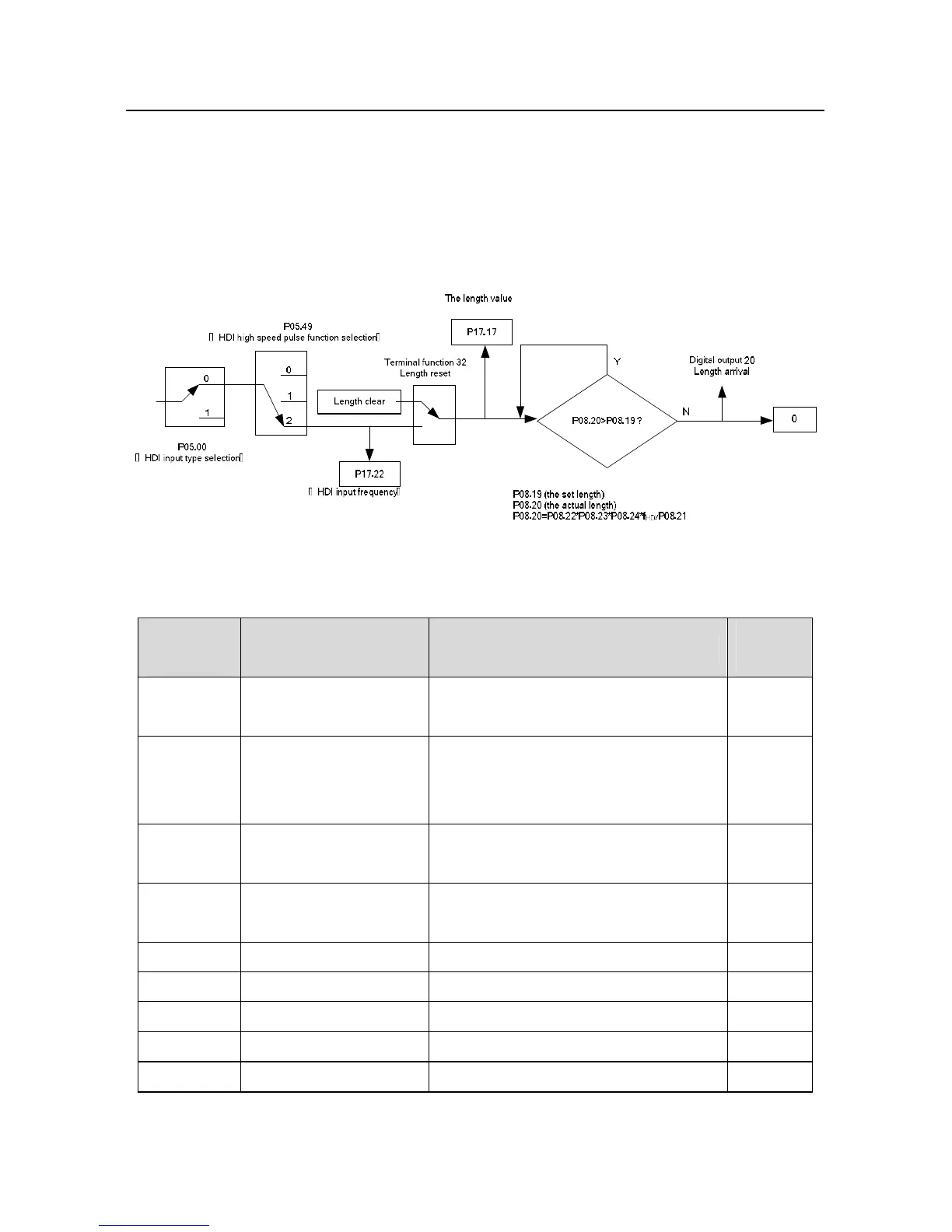

7.18 Fixed-length control
Goodrive200 series inverters support fixed-length control function which can input length counting
pulse through HDI, and then count the actual length according to the internal counting formula. If
the actual length is longer than or equal to the set length, the digital output terminal can output the
length arrival pulse signal of 200ms and the corresponding length will be cleared automatically.
Note: the length arrival belongs to pulse output and the lasting time is 200ms.
Function
code
Name Detailed instruction of parameters
Default
value
P05.00 HDI input type selection
0: HDI is high pulse input
1: HDI is switch input
0
P05.40
Corresponding setting of
the upper limit of AI2
0: Frequency setting input
1: Counter input
2: Length counting input
0
P05.01~
P05.09
Digital input function
selection
32: Length reset
P06.01~
P06.04
Digital output function
selection
21: Length arrival
P08.19 Setting length 0~65535m 0
P08.20 Actual length 0~65535m 0
P08.21 Pulse per rotation 1~10000 1
P08.22 Alxe perimeter 0.01~100.00cm 10.00cm
P08.23 Length ratio 0.001~10.000 1.000
