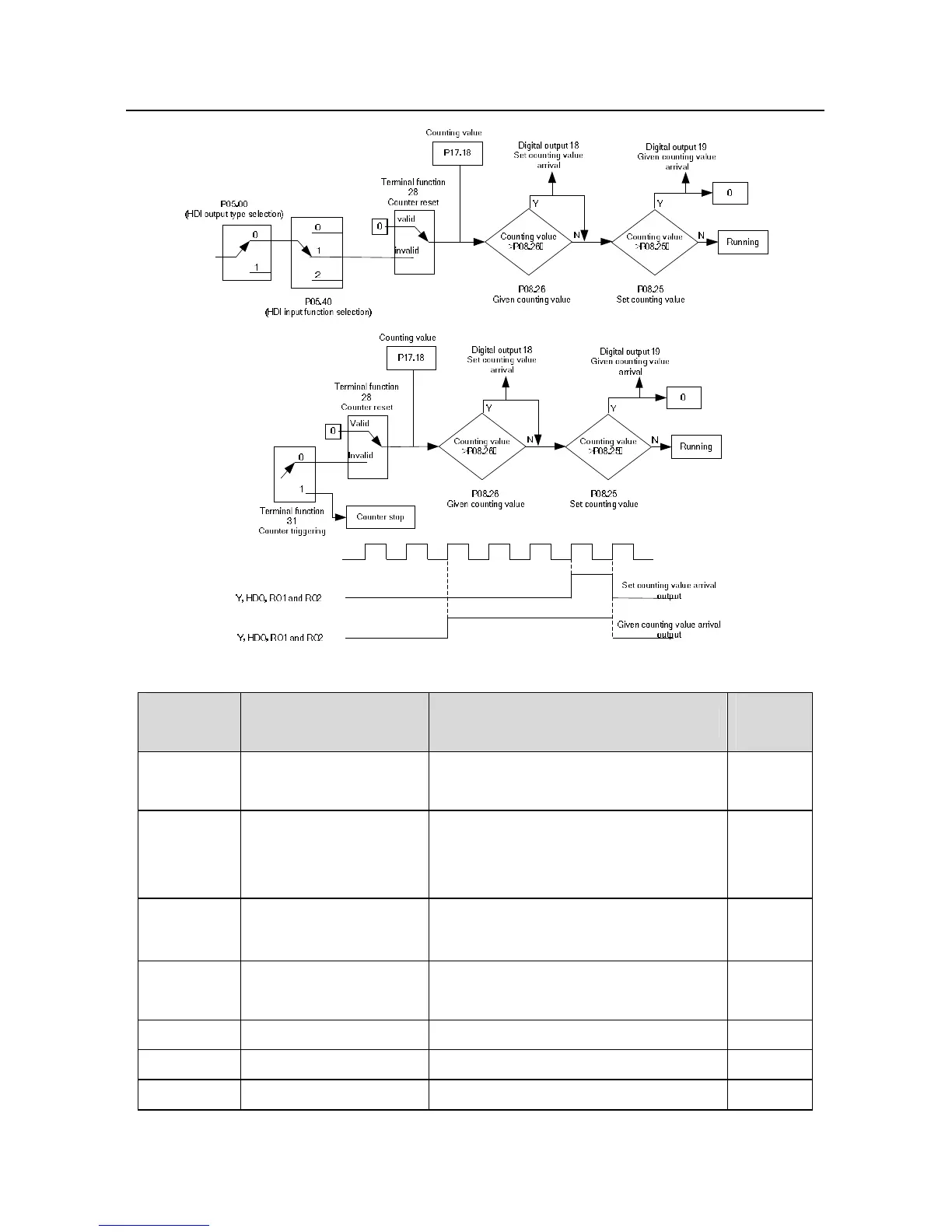

INVT GD200-037G/045P-4 - Fixed-length Control; Fixed-Length Control Logic and Parameters

Goodrive200 inverters Basic operation instruction
194
Function
code
Name Detailed instruction of parameters
Default
value
P05.00 HDI input selection
0:HDI is high pulse input
1:HDI is switch input
0
P05.40
Corresponding setting of
the upper limit of AI2
0:Frequency setting input
1:Counter input
2:Length counting input
0
P05.01~
P05.09
Digital input function
selection
28:Counter reset
31:Counter trigger
P06.01~
P06.04
Digital output function
selection
17:Completion of simple PLC cycle
18:Setting count value arrival
P08.25 Setting counting value
P08.26~65535 0
P08.26 Reference counting value
0~P08.25 0
P17.18 Counting value 0~65535 0
