Goodrive200 inverters Installation guidelines
25
4.3 Standard wiring

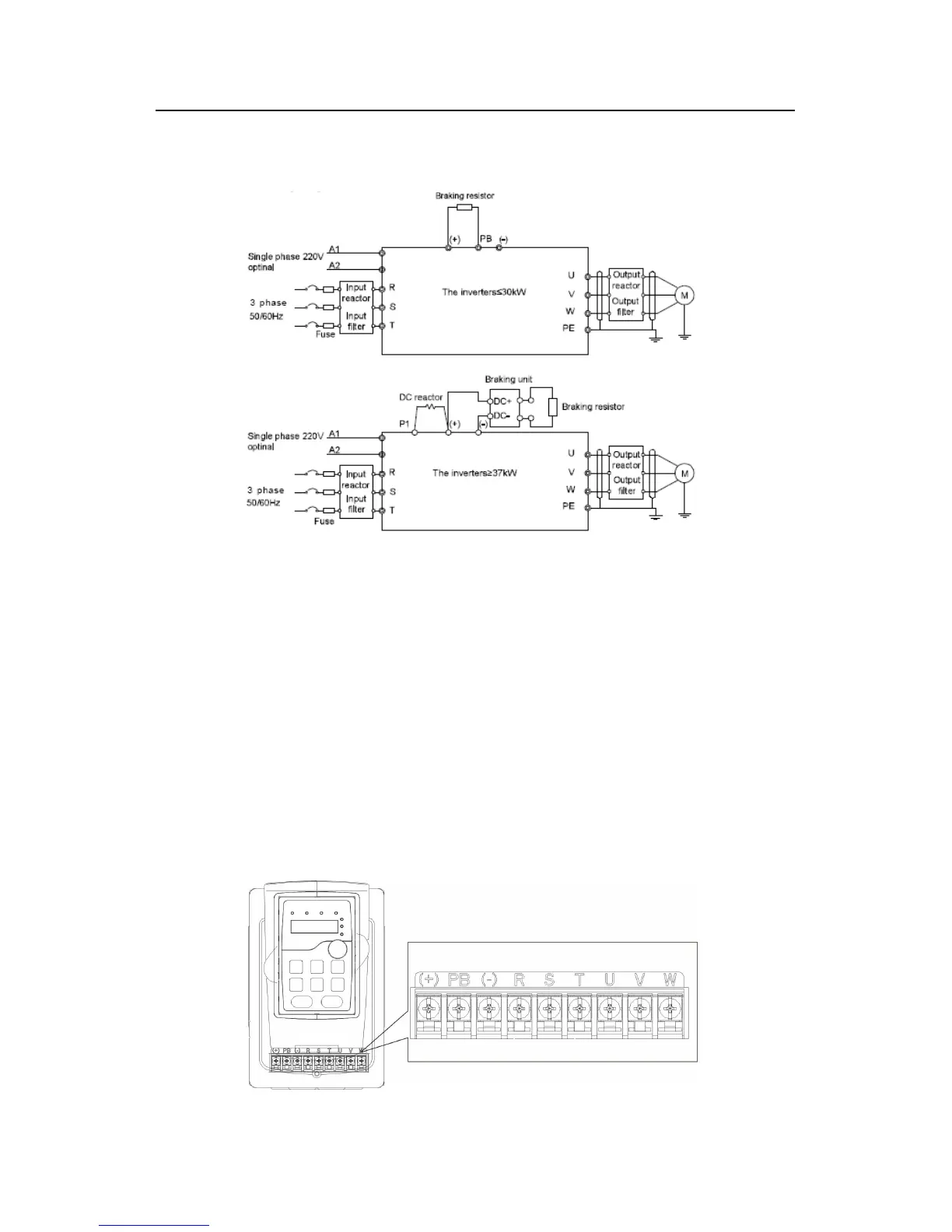

4.3.1 Wiring diagram of main circuit
Fig 4-7 Wiring diagram of main circuit
Note:
The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output
reactor, output filter are optional parts. Please refer to Peripheral Optional Parts for
detailed information.
A1 and A2 are optional parts.
P1 and (+) are short circuited in factory, if need to connect with the DC rector, please
remove the contact tag between P1 and (+).
Before connecting the braking resistor cable, remove the yellow labels of PB, (+),
and (-) from the terminal blocks. Otherwise, poor connection may occur.
4.3.2 Terminals figure of main circuit
