INVT GD200-037G/045P-4 - Page 71

Goodrive200 inverters Function codes
70
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
The setting range of P04.01:0.0%:(automatic)
0.1%~10.0%
The setting range of P04.02:0.0%~50.0%
P04.03
V/F
frequency
1 of motor
1

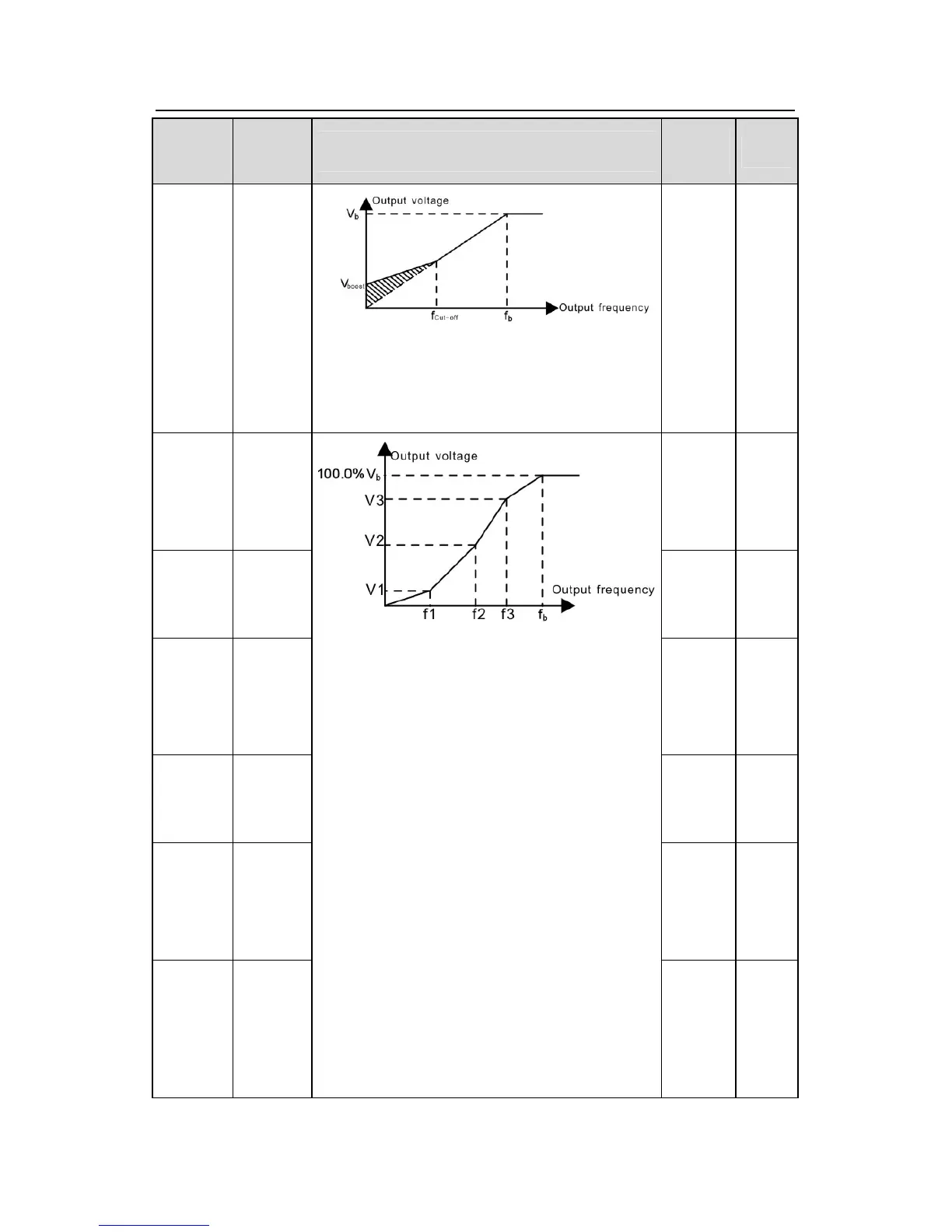

When P04.00 =1, the user can set V//F curve
through P04.03~P04.08.
V/F is generally set according to the load of the
motor.
Note:V1＜V2＜V3, f1＜f2＜f3. Too high low
frequency voltage will heat the motor excessively
or damage. The inverter may occur the
overcurrent speed or overcurrent protection.
The setting range of P04.03: 0.00Hz~P04.05
The setting range of P04.04:0.0%~110.0%
The setting range of P04.05:P04.03~ P04.07
The setting range of P04.06:0.0%~110.0%
(the rated voltage of motor 1)
The setting range of P04.07:P04.05~ P02.02
(the rated frequency of motor 1)
The setting range of P04.08:0.0%~110.0%
0.00Hz
○
P04.04
V/F
voltage
1 of motor
1
00.0%
○
P04.05
V/F
frequency
2 of motor
1
00.00Hz
○
P04.06
V/F
voltage
2 of motor
1
00.0%
○
P04.07
V/F
frequency
3 of motor
1
00.00Hz
○
P04.08
V/F
voltage
3 of motor
1
00.0%
○
