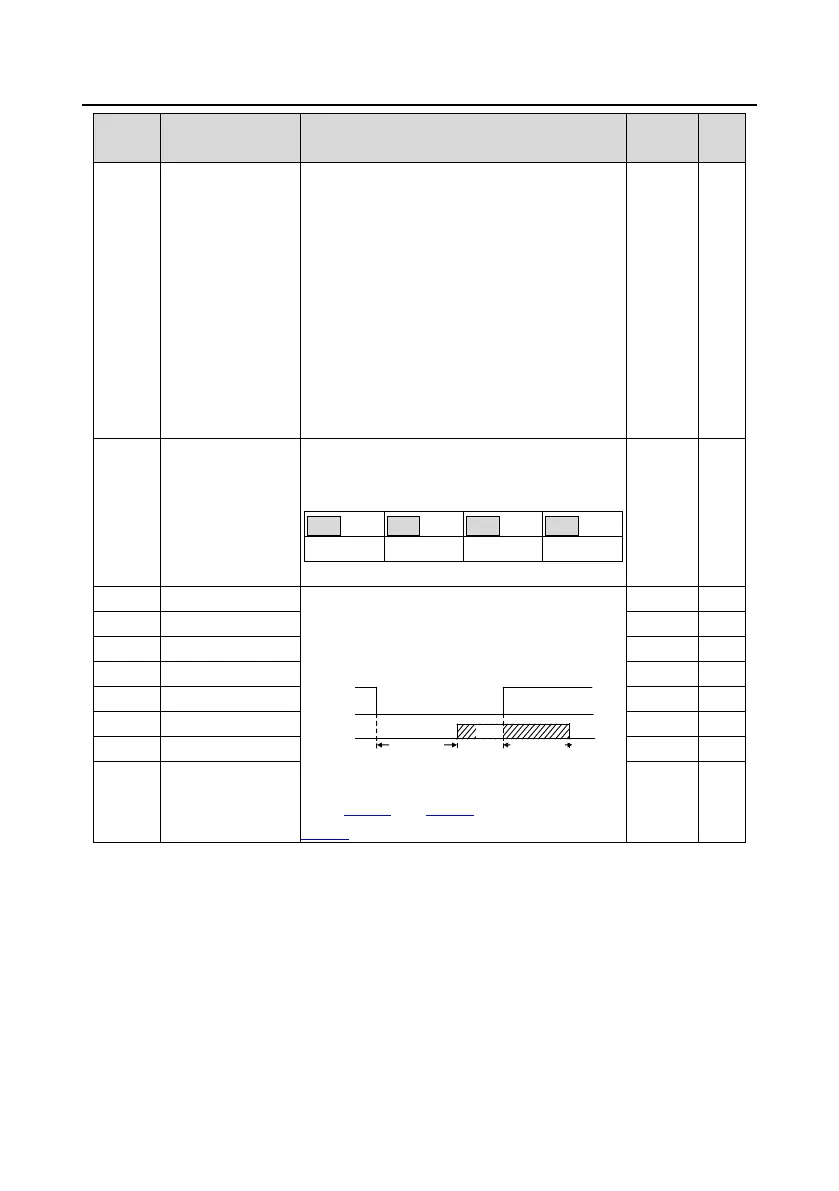

INVT GD270-030-4 - Page 173

Goodrive270 series VFD for fan and pump Function parameter list
-163-
Function
code
Name Description Default
Modify
54: Indication of run with backup pressure
55: Water shortage indication of inlet pool
56: Pre
-alarm output
57: Control variable
-frequency circulation motor
A
58: Control variable
-frequency circulation motor
B
59: Control variable
-frequency circulation motor
C
60: Control variable
-frequency circulation motor
D
P06.05
Output terminal
polarity selection
Used to set the polarity of output terminals.
When a bit is 0, the input terminal is positive;
when a bit is 1, the input terminal is negative.
BIT3
BIT2
BIT1
BIT0
Reserved
RO1
Reserved
Y
Setting range: 0x0±0xF
00 ƻ
P06.06
Y1 switch-on delay
Used to specify the delay time corresponding to
the electrical level changes when the
programmable output terminals switch on or
switch off.
Y electric level
Y valid
Invalid
Switch on
delay
invalid
Valid
Switch off
delay
Setting range: 0.000
±50.000s
Note:
P06.08 and P06.09 are valid only when
P06.00=1.
0.000s
ƻ
P06.07
Y1 switch-off delay
0.000s
ƻ
P06.08
Reserved
P06.09
Reserved
P06.10
RO1 switch-on delay
0.000s
ƻ
P06.11
RO1 switch-off delay
0.000s
ƻ
P06.12
Reserved
P06.13 Reserved
