Goodrive270 series VFD for fan and pump Installation guidelines
-15-
4.2.3 Installation method
The VFD installation method varies depending on the size. The installation methods include wall
mounting, flange mounting (applicable to 200kW and lower models), and floor mounting (applicable to
220±500kW models).
Wall mounting
Flange mounting

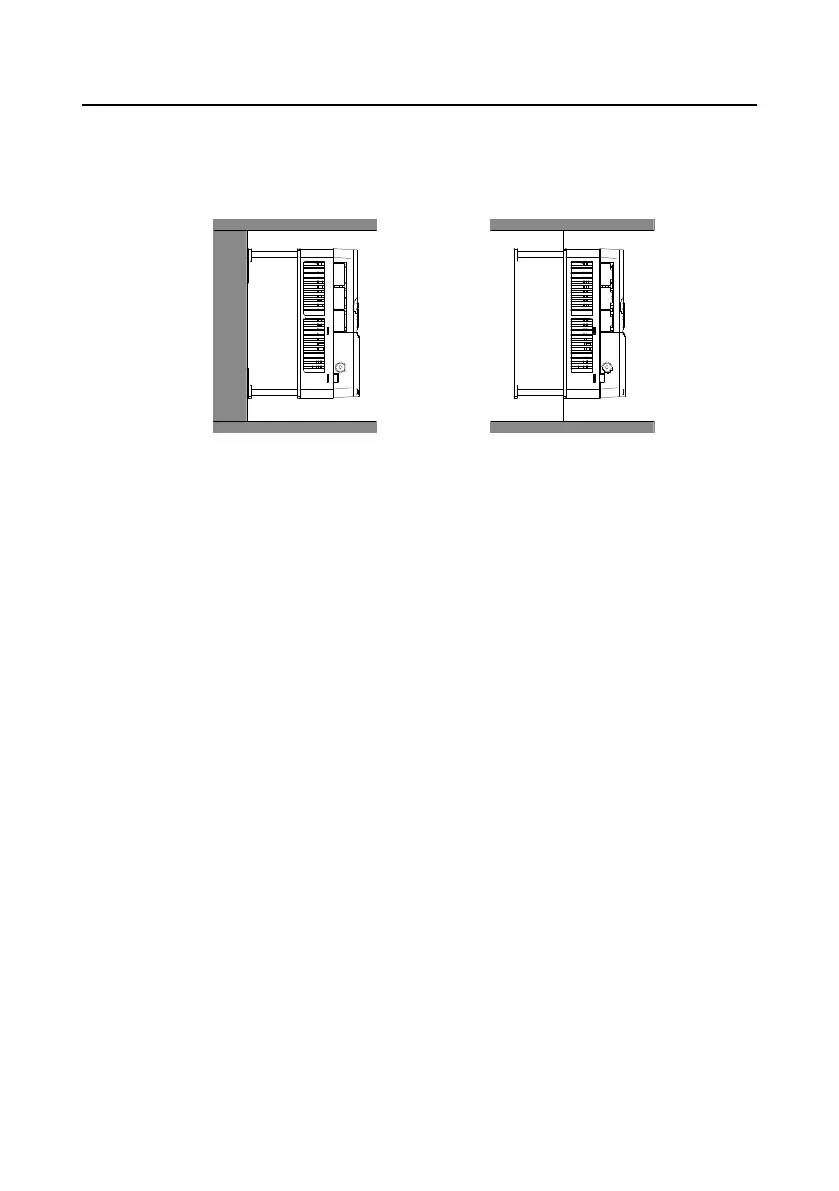

Figure 4-2 Installation method
The installation procedure is as follows:
1. Mark the installation hole positions. For details about the installation hole positions, see
Appendix C Dimension drawings.
2. Mount the screws or bolts onto the designated positions.
3. Lean the VFD against the wall.
4. Tighten the screws.
Note:
The flange mounting plate must be used for flange mounting.
The 380V 220±500kW models support the (optional part) installation base, which can house an
output AC reactor.
