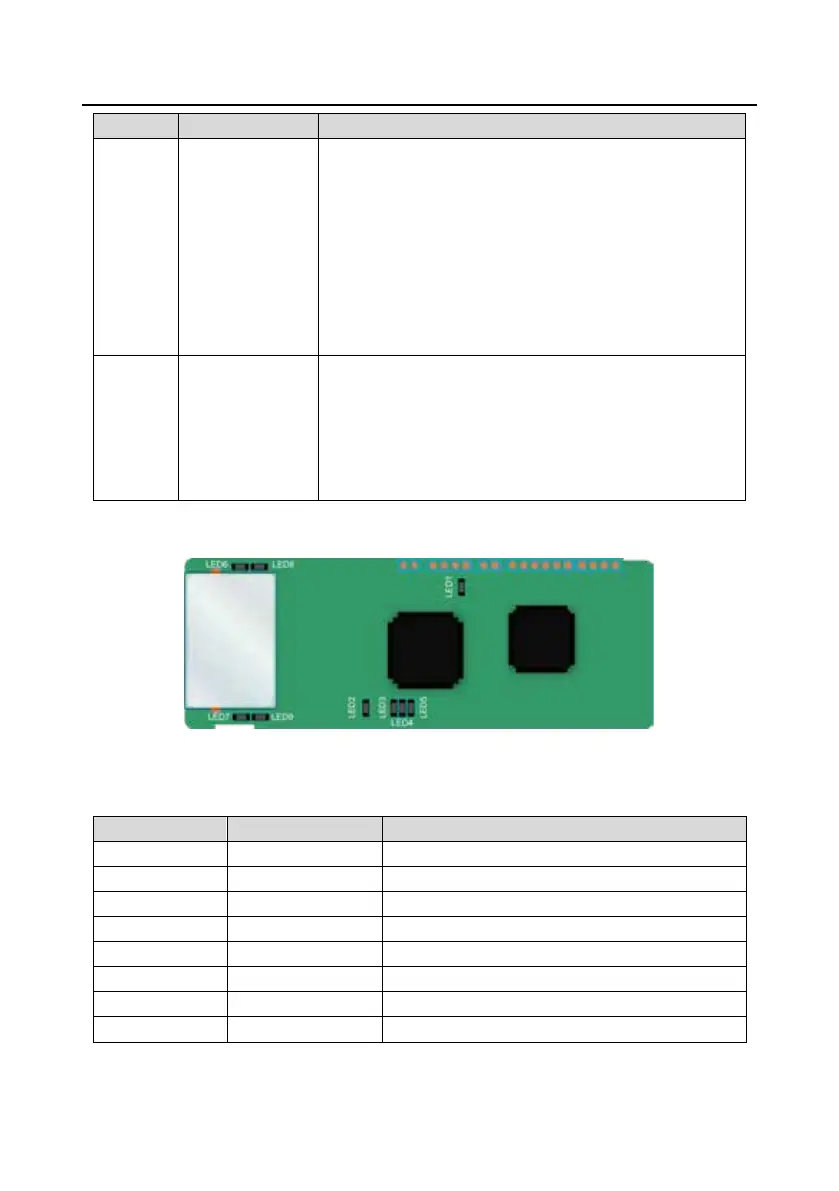

Goodrive270 series VFD for fan and pump Expansion card
-300-
Indicator
Definition
Function
LED5 Run indicator
This indicator is on when the communication card is in the
working state.
It is off when a fault occurs. Check whether the reset pin of
the communication card and the power supply are properly
connected.
It blinks when the communication card is in the pre-operation
state.
It blinks once when the communication card is in the stopped
state.
LED6 Error indicator
This indicator is on when the CAN controller bus is off or a
fault occurs on the VFD.
It is off when the communication card is in the working state.
It blinks when the address setting is incorrect.
It blinks once when a received frame is missed or an error
occurs during frame receiving.
For details about the operation, see Goodrive350 series VFD communication expansion card manual.
A.5.4 PROFINET communication card (EC-TX509)
The terminal CN2 adopts standard RJ45 interfaces, which are in the dual design, and the two RJ45
interfaces are not distinguished from each other and can be interchangeably inserted. They are
arranged as follows:
Pin
Name
Description
1
TX+
Transmit Data+
2
TX-
Transmit Data-
3
RX+
Receive Data+
4
n/c
Not connected
5
n/c
Not connected
6
RX-
Receive Data-
7
n/c
Not connected
8
n/c
Not connected
Indicator definition:
