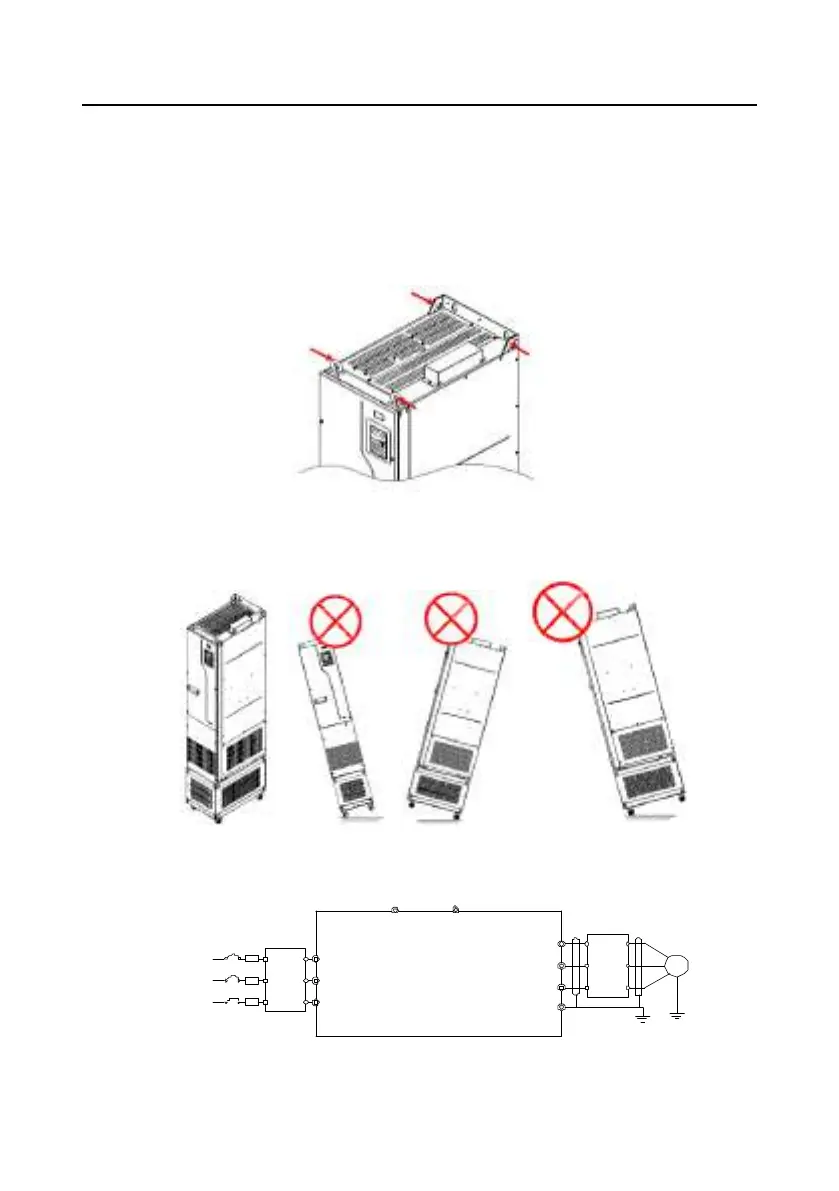

Goodrive270 series VFD for fan and pump Installation guidelines
-27-
6. Pay attention to the following:
(1) Detach the VFD from the cabinet by following the preceding procedure in reverse sequence.
(2) When fixing the VFD, ensure that the four mounting holes of VFD have been securely
connected to the mounting crossbeam.
(3) Use the lifting ring on the top of VFD for lifting and moving. Never apply force to the positive
and negative bus terminals.
(4) If you need to place the VFD vertically, avoid applying force to VFD sides or placing the VFD on
a tilted surface. If the tilted angle is more than 5°, the VFD may suffer rollover since the VFD
has a large size and heavy weight (about 200kg). This may cause the VFD to tip over.
4.3 Standard wiring of the main circuit
4.3.1 Wiring diagram of the main circuit
Input
reactor
Input
filter
Fuse
R
S
T
U
V
W
PE
Output
reactor
Output
filter
M
+ -
3PH power
380V 50/60Hz
380V VFD
Figure 4±19 AC 3PH 380V main circuit wiring diagram
