Goodrive270 series VFD for fan and pump Installation guidelines
-18-
4.2.7 Tilted installation
Cold
air
Cold
air
Hot
air
Hot
air
Cold
air
Hot
air

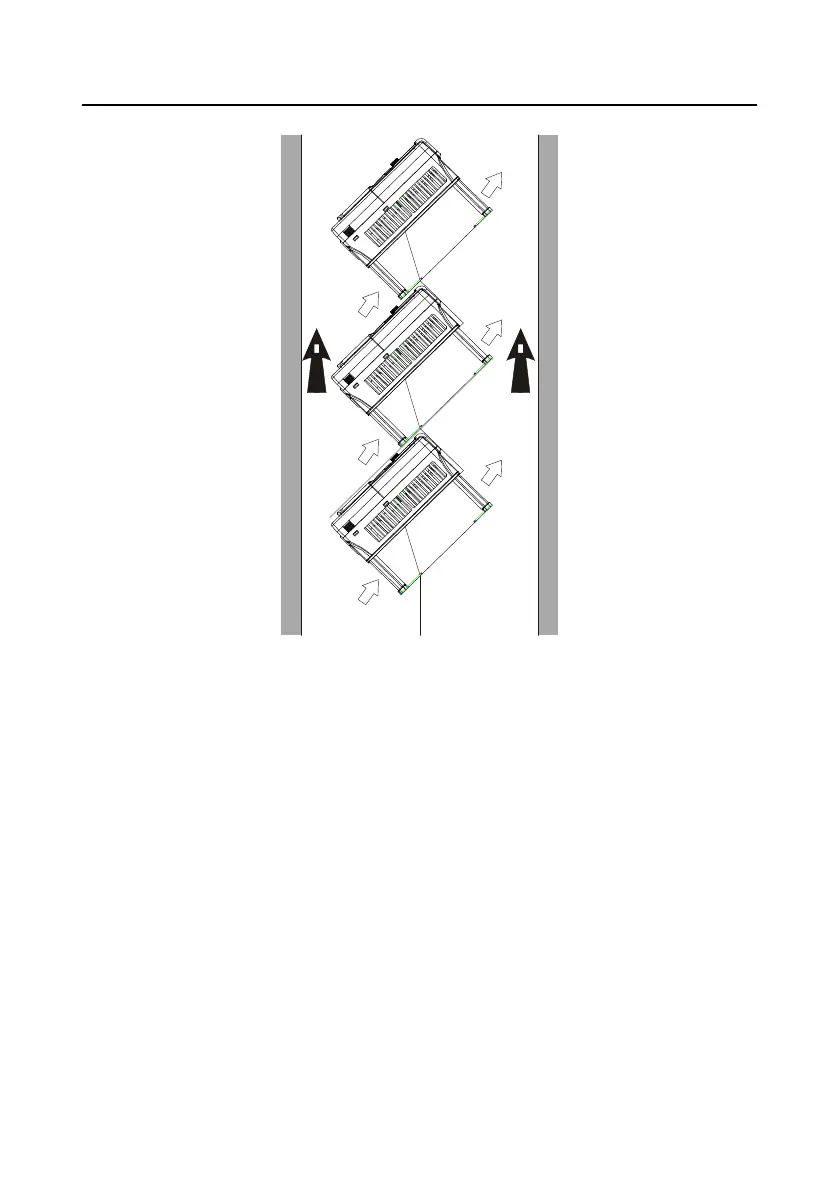

Figure 4-6 Tilted installation
Note: During tilted installation, it is a must to ensure the air inlet duct and air outlet duct are
separated from each other to avoid mutual interference.
4.2.8 In-cabinet installation
4.2.8.1 Heat dissipation description
The models including GD270-220-4, GD270-250-4, GD270-280-4, GD270-315-4, GD270-355-4,
GD270-400-4, GD270-450-4, and GD270-500-4 can be mounted in cabinets. Heat dissipation must
be considered for cabinet installation.
Figure 4±7 shows how to mount the VFD in a direct exhaust cabinet (without a fan at the top).
