Goodrive270 series VFD for fan and pump Installation guidelines
-28-
Note:
The fuse, input reactor, input filter, output reactor, and output filter are optional parts. For details,
see Appendix D Optional peripheral accessories.
If you require the built-in DC reactor, purchase the VFD model with the suffix "-L1".
4.3.2 Terminal diagram of the main circuit

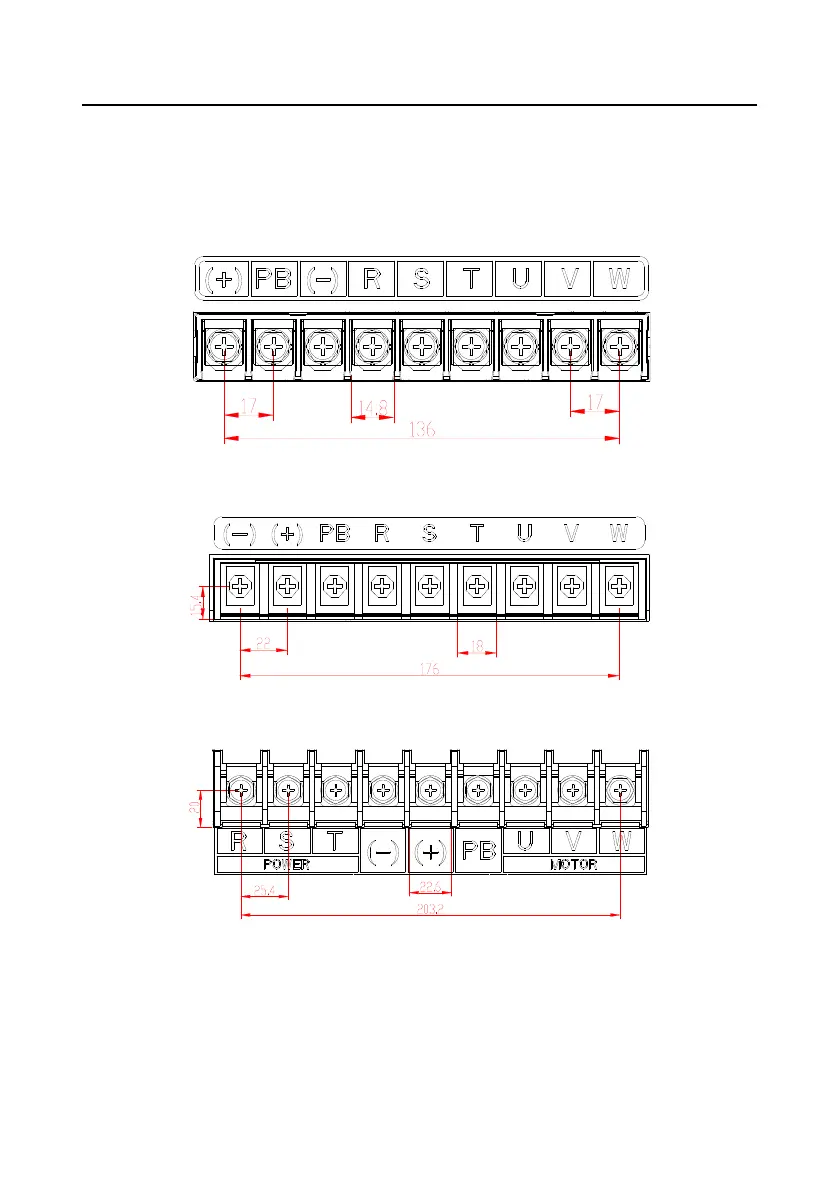

Figure 4-20 Main circuit terminal diagram for 3PH 380V 30±37kW (unit: mm)
Figure 4-21 Main circuit terminal diagram for 3PH 380V 45kW (unit: mm)
Figure 4-22 Main circuit terminal diagram for 3PH 380V 55±90kW (unit: mm)
