Goodrive270 series VFD for fan and pump Installation guidelines
-14-
Environment
Condition
Relative
humidity (RH)
îš— Less than 90%
îš— Condensation is not allowed.
îš— The max. RH cannot exceed 60% in the environment where there are
corrosive gases.
Storage
temperature
-30±+60.0°C
Running
environment
Install the VFD in a place:
îš— Away from electromagnetic radiation sources
îš— Away from oil mist, corrosive gases, and combustible gases
îš— Without the chance for foreign objects such as metal powder, dust, oil and
water to fall into the VFD (do not install the VFD onto combustible objects
such as wood)
îš— Without radioactive substances and combustible objects
îš— Without hazard gases or liquids
îš— With low salt content
îš—
Without direct sunlight
Altitude
îš— Lower than 1000m
îš— When the altitude exceeds 1000m, derate 1% for every increase of 100m.
îš— When the installation site altitude exceeds 3000m, consult the local INVT
dealer or office.
Vibration
The max. amplitude of vibration cannot exceed 5.8m/s
2
(0.6g).
Installation
direction
Install the VFD vertically to ensure good heat dissipation performance.
4.2.2 Installation direction
The VFD can be installed on the wall or in a cabinet.
The VFD must be installed vertically. Check the installation position according to following
requirements. For details about the outline dimensions, see Appendix C Dimension drawings.
OK
NG
NG
a. Vertical installation b. Horizontal installation
c. Lateral installation

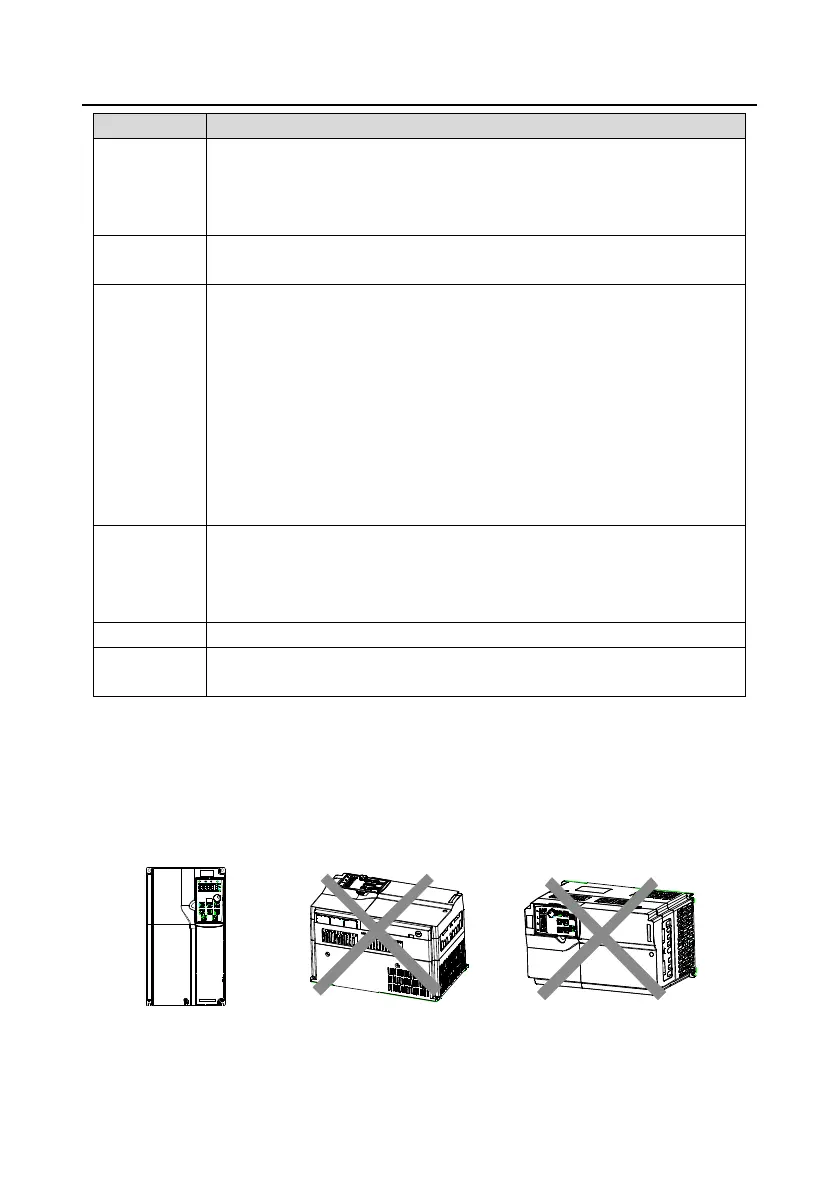

Figure 4-1 VFD installation direction
