INVT GD270-030-4 User Manual

Goodrive270 series VFD for fan and pump Basic operation guidelines
-40-
No.
Name
Description

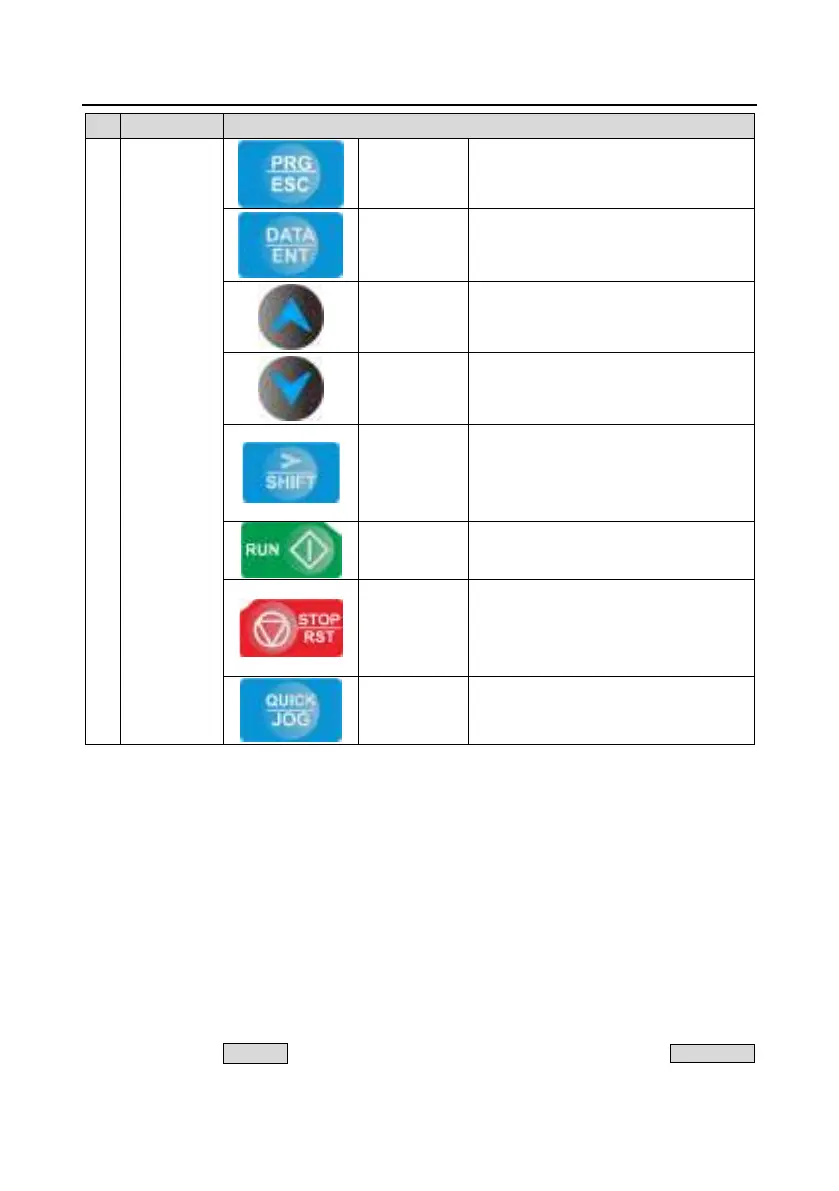

5 Keys
Programming
key
Press it to enter or exit level-1 menus or
delete a parameter.
Confirmation
key
Press it to enter menus in cascading
mode or confirm the setting of a
parameter.
Up key Press it to increase data or move upward.
Down key
Press it to decrease data or move
downward.
Right-shifting
key
Press it to select display parameters
rightward in the interface for the VFD in
stopped or running state or to select
digits to change during parameter setting.
Run key
Press it to run the VFD when using the
keypad for control.
Stop/
Reset key
Press it to stop the VFD that is running.
The function of this key is restricted by
P07.04. In fault alarm state, this key can
be used for reset in any control modes.
Multifunction
shortcut key
The function is determined by P07.02.
5.3 Keypad display
The VFD keypad can display the stopped-state parameters, running-state parameters, function
parameter editing status, and fault alarm status.
5.3.1 Displaying stopped-state parameters
When the VFD is in stopped state, the keypad displays stopped-state parameters. See Figure 5±2.
In the stopped state, various types of parameters can be displayed. You can determine which
parameters are displayed in stopped state by setting function code P07.07.
In stopped state, there are 15 parameters that can be selected for display, including the set frequency,
bus voltage, PID reference value, PID feedback value, input terminal status, output terminal status,
torque setting, PLC and the present step of multi-step speed, AI1 value, AI2 value, AI3 value,
high-speed pulse HDI frequency, pulse counting value, length value, and upper limit frequency (Hz
on). You can press NJ/SHIFT to shift selected parameters from left to right or press QUICK/JOG
