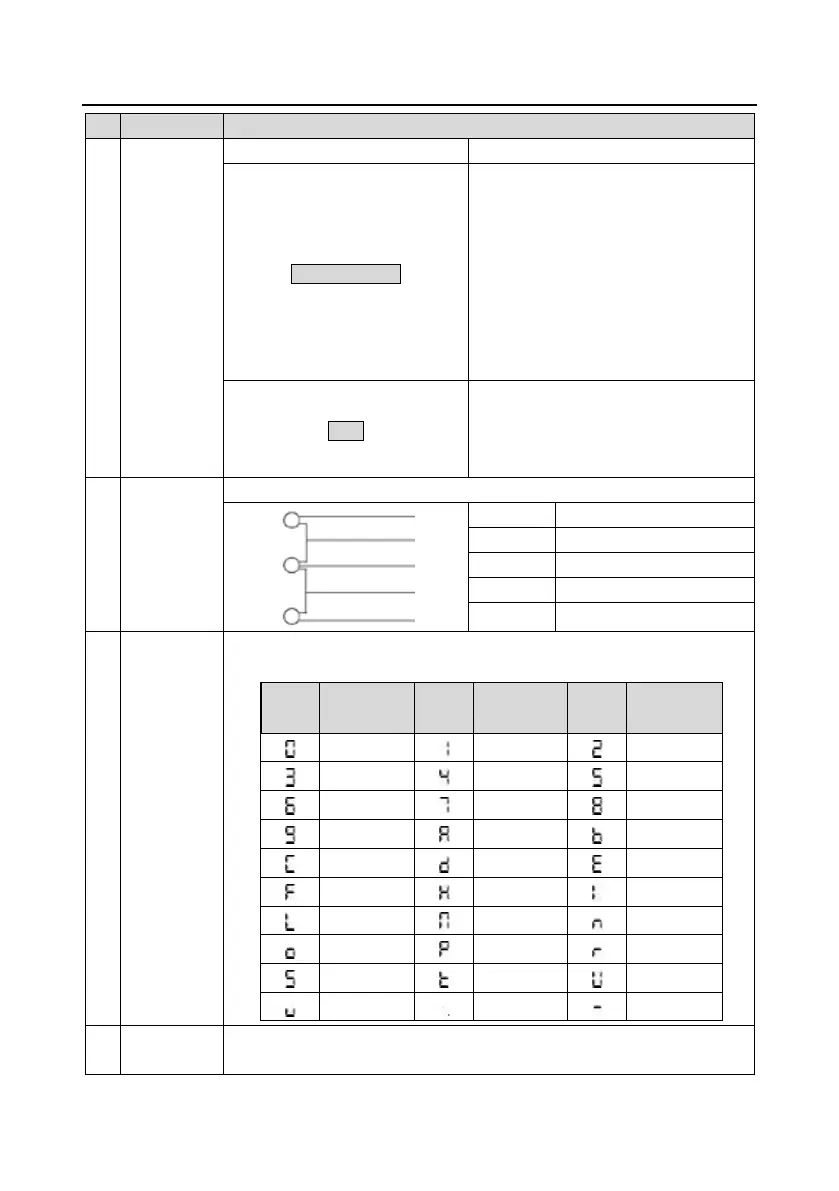

INVT GD270-030-4 User Manual

Goodrive270 series VFD for fan and pump Basic operation guidelines
-39-
No.
Name
Description
LED on: The VFD is running reversely.
LOCAL/REMOT
Indicates whether the VFD is controlled
through the keypad, terminals, or
communication.
Off: The VFD is controlled through the
keypad.
Blinking: The VFD is controlled through
terminals.
On: The VFD is controlled through
remote communication.
TRIP
Fault indicator;
LED on: in fault state
LED off: in normal state
LED blinking: in pre-alarm state
2 Unit indicator
Unit displayed currently
Hz
Frequency unit
RPM
Rotation speed unit
A
Current unit
%
Percentage
V Voltage unit
3
Digital
display zone
Five-digit LED displays various monito
ring data and alarm codes such as the
frequency setting and output frequency.
0
3
6
9
C
F
L
O
S
v
1
4
7
A
d
H
N
P
t
.
2
5
8
b
E
l
n
r
U
-
Display Display Display MeansMeans Means
4
Digital
potentiometer
Used for frequency regulation. For details, see the description of P08.41.
