INVT GD270-030-4 User Manual

Goodrive270 series VFD for fan and pump Expansion card
-292-

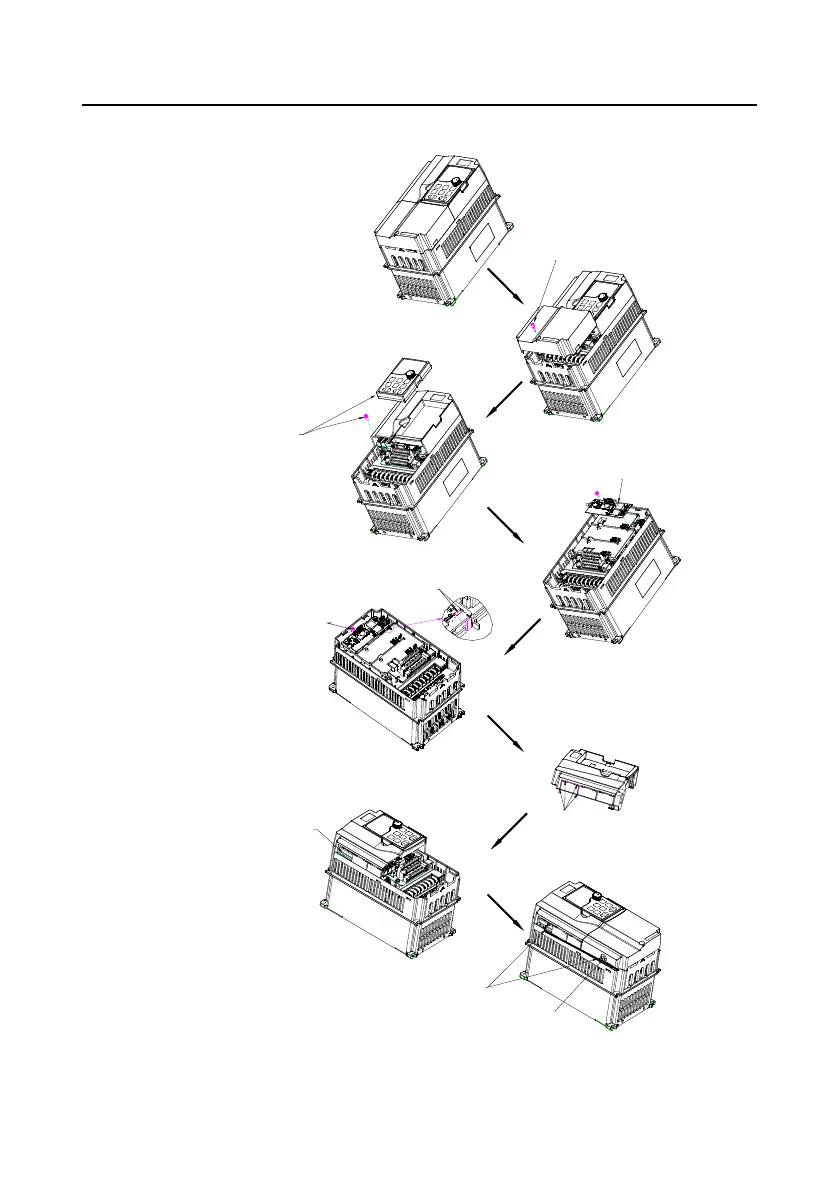

Figure A±2 shows the expansion card installation procedure.
EC wire binding
Wiring for installation
STEP 8
STEP 6
Cut the corresponding outlet frame.
After the cutting
STEP 7
Remove the screws, take off the keypad, and distach the upper cover.
ḕⴻ㓶㢲㢲
㢲
Scale: 4:1
Aligh the EC fixing holes with the columns to snap into place.
STEP 5
Insert the EC.
STEP 4
Remove the screws and distach the lower cover.
STEP 2
STEP 3
STEP 1
Fasten the screws
Figure A±2 Expansion card installation procedure
