INVT GD270-030-4 User Manual

Goodrive270 series VFD for fan and pump Installation guidelines
-23-

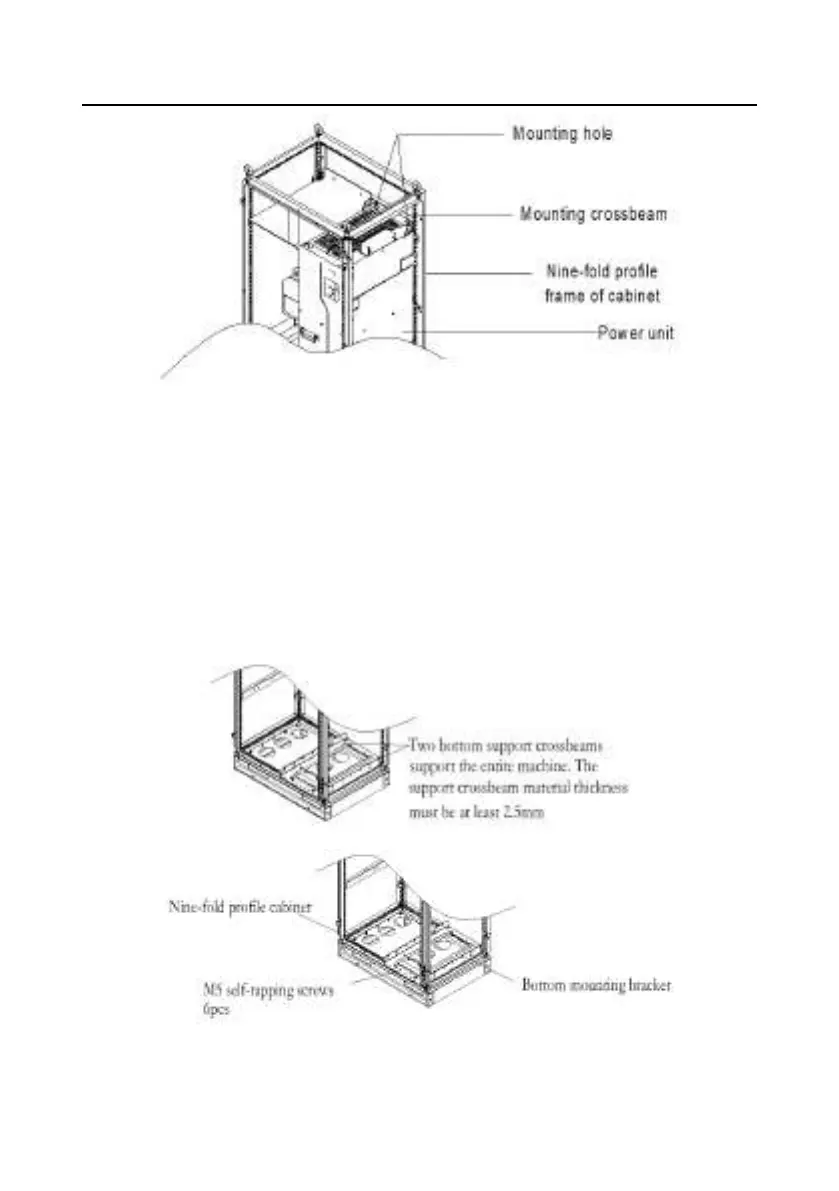

Figure 4±12 Three-dimension view of mounting GD270-280-4±GD270-500-4 in a cabinet
2. Fix the bottom support crossbeams and mounting bracket. (See Figure 4±13.)
(1) Use eight M8 cage nuts to fix the two bottom support crossbeams to the base of the nine-fold
SURILOHFDELQHWIUDPH7KHVXSSRUWFURVVEHDPVDUHXVHUGHVLJQHG7PPILUPO\LQVWDOOHG
(2) Fix the mounting bracket to the nine-fold profile cabinet frame base with six M5 self-tapping
screws, as shown in the following figure.
(3) If you use another type of cabinet but not nine-fold profile cabinet, the fixing holes for the
mounting bracket need to be drilled and assembled on site.
Figure 4±13 Bottom mounting bracket diagram
