Goodrive270 series VFD for fan and pump Basic operation guidelines
-55-

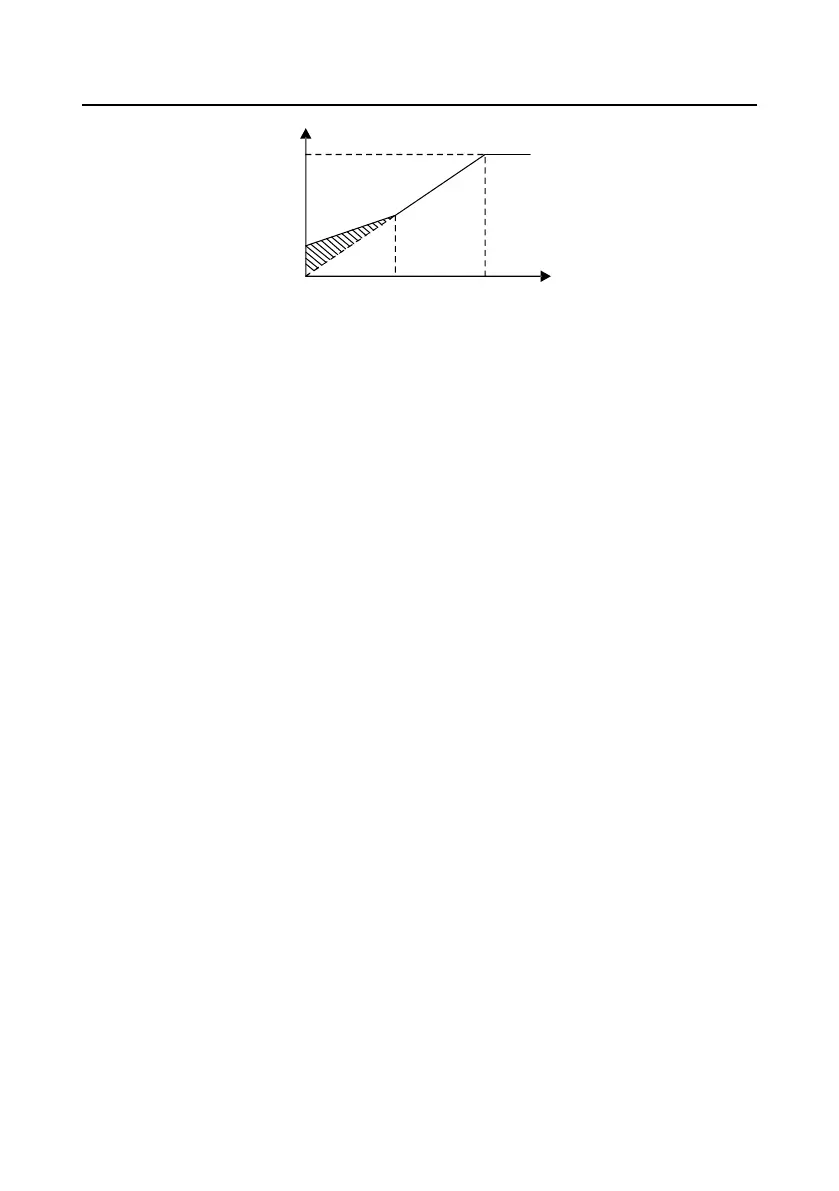

Output voltage V
Output frequency f
V
b
V
boost
f
cutoff
f
b
(2) V/F slip compensation gain
Space voltage vector control belongs to an open-loop mode. Sudden motor load changes
cause motor speed fluctuation. In cases where strict speed requirements must be met, you can
set the slip compensation gain to compensate for the speed change caused by load fluctuation
through VFD internal output adjustment.
The setting range of slip compensation gain is 0±200%, in which 100% corresponds to the
rated slip frequency.
Note: Rated slip frequency = (Rated synchronous rotation speed of motor ± Rated
rotation speed of motor) x (Number of motor pole pairs)/60
(3) Oscillation control
Motor oscillation often occurs in space voltage vector control in large-power driving
applications. To solve this problem, the VFD provides two oscillation factor function codes. You
can set the function codes based on the oscillation occurrence frequency.
Note: A greater value indicates better control effect. However, if the value is too large,
the VFD output current may be too large.
(4) AM IF control
Generally, the IF control mode is valid for AMs. It can be used for SMs only when the frequency
is extremely low. Therefore, the IF control mode described in this manual is only involved with
AMs. IF control is implemented by performing closed-loop control on the total output current of
the VFD. The output voltage adapts to the current reference, and open-loop control is
separately performed over the frequency of the voltage and current.
Customized V/F curve (V/F separation) function:
