INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Function parameter list
-101-
Function
code
Name
Description
Default
Modify

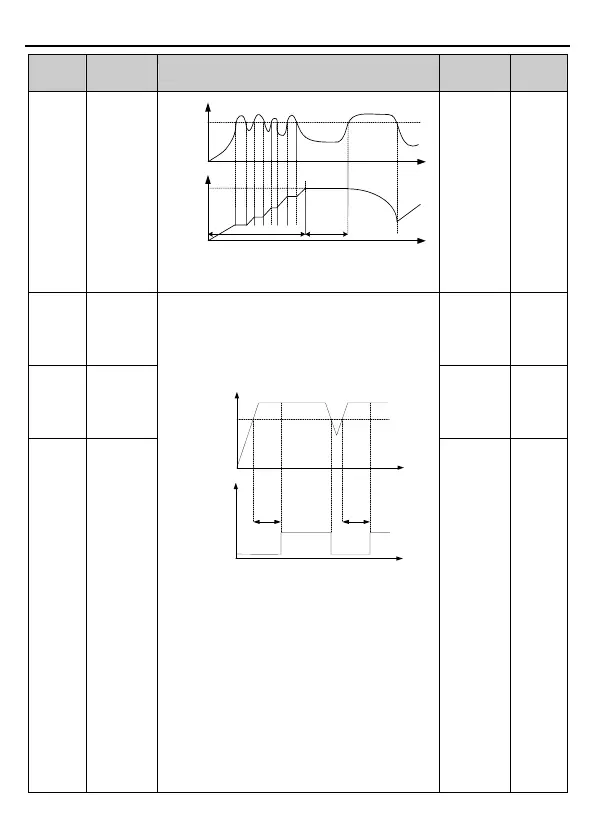

Output current A
Output frequency f
Current-limit
threshold
Set
frequency
Acceleration
Constant
speed
Time t
Time t
Setting range of P11.06: 50.0–200.0%
Setting range of P11.07: 0.00–50.00Hz/s
P11.08
Pre-alarm
selection for
VFD/motor
OL/UL
Overload pre-alarm signal will be outputted if the
output current of the VFD or motor is higher than
overload pre-alarm detection level (P11.09), and
the duration exceeds overload pre-alarm
detection time (P11.10).
Y,
RO1, RO2
Output current
Overload pre-alarm
threshold
Time t
Time t
Pre-alarm time tPre-alarm time t
Setting range of P11.08:
The function code is used to enable and define
the overload pre-alarm of the VFD/motor.
Setting range: 0x000–0x131
Ones place:
0: Motor overload/underload pre-alarm, relative
to rated motor current;
1: VFD overload/underload pre-alarm, relative to
rated VFD current.
Tens place:
0: The VFD continues running after
overload/underload alarm;
0x000
○
P11.09
Overload
pre-alarm
detection
level
150%
○
P11.10
Overload
pre-alarm
detection
time
1.0s
○
