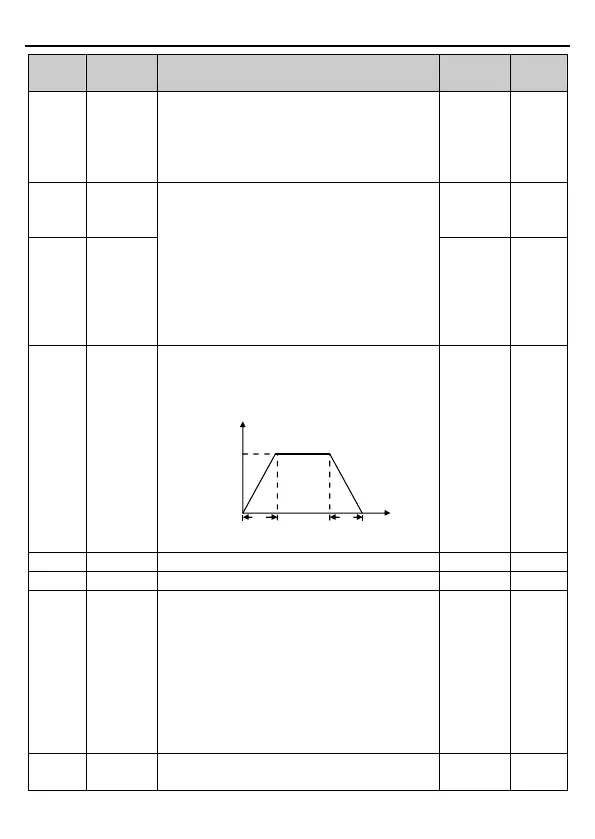

INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Function parameter list
-41-
Function
code
Name
Description
Default
Modify
starting frequency, the VFD stops running and
keeps in the standby state. The starting
frequency is not limited in the lower limit
frequency.
Setting range: 0.0–50.0s
P01.03
DC braking
current
before start
The VFD performs DC braking with the braking
current before start and it speeds up after the DC
braking time. If the DC braking time is set to 0,
the DC braking is invalid.
Stronger braking current indicates larger braking
power. The DC braking current before start is a
percentage of the VFD rated current.
Setting range of P01.03: 0.0–100.0%
Setting range of P01.04: 0.00–50.00s
0.0%
◎
P01.04
DC braking
time before
start
0.00s
◎
P01.05
ACC and
DEC mode
The function code indicates the changing mode
of the frequency during start and running.
0: Linear type. The output frequency increases
or decreases linearly.
fmax
Output frequency f
t1 t2
Time t
1: Reserved
0
◎
P01.06
Reserved
P01.07
Reserved
P01.08
Stop mode
0: Decelerate to stop. After a stop command
takes effect, the VFD lowers output frequency
based on the DEC mode and the defined DEC
time; after the frequency drops to the stop speed
(P01.15), the VFD stops.
1: Coast to stop. After a stop command takes
effect, the VFD stops output immediately; and
the load coasts to stop according to mechanical
inertia.
0
○
P01.09
Starting
frequency
Starting frequency of DC braking for stop: During
the deceleration to stop, the VFD starts DC
0.00Hz
○
