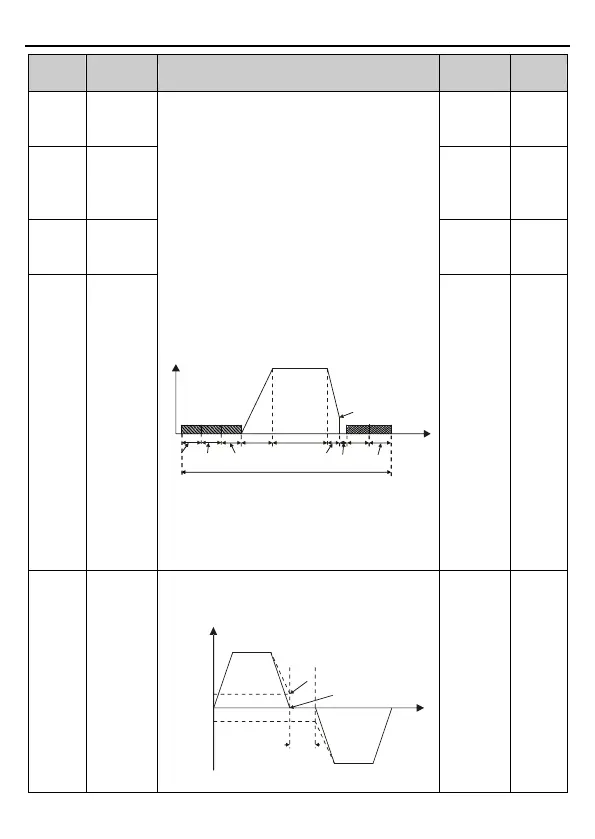

Goodrive30 Series VFD Function parameter list
-42-
Function
code
Name
Description
Default
Modify
of DC
braking for
stop
braking for stop when running frequency reaches
the starting frequency determined by P01.09.
Wait time before DC braking for stop: The VFD
blocks the output before starting DC braking.
After this wait time, DC braking is started so as to
prevent overcurrent caused by DC braking at
high speed.
DC braking current for stop: The value of P01.11
is the percentage of rated current of VFD.
Stronger current indicates greater DC braking
effect.
DC braking time for stop: It indicates the hold
time of DC braking. If the time is 0, DC braking is
invalid, and the VFD decelerates to stop within
the specified time.
P01.04
Acceleration
P13.14
P01.23
Constant speed
In running
Deceleration
P01.10
P13.15
P01.12
P01.09
Time t
Setting range of P01.09: 0.00Hz–P00.03 (Max.
output frequency)
Setting range of P01.10: 0.00–50.00s
Setting range of P01.11: 0.0–100.0%
Setting range of P01.12: 0.00–50.00s
P01.10
Wait time
before DC
braking for
stop
0.00s
○
P01.11
DC braking
current for
stop
0.0%
○
P01.12
DC braking
time for
stop
0.00s
○
P01.13
FWD/REV
running
deadzone
time
This function code indicates the transition time
specified in P01.14 during FWD/REV rotation
switching. See the figure.
Output frequency f
Forward
Reverse
Deadzone
time
Time t
Starting
frequency
Switch over after
zero frequency
Switch over after
starting frequency
Setting range: 0.0–3600.0s
0.0s
○
