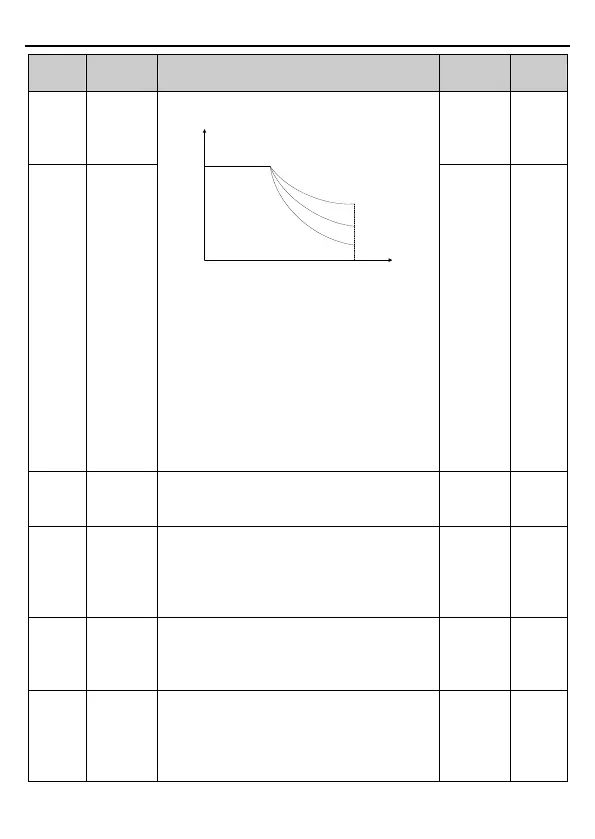

INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Function parameter list
-55-
Function
code
Name
Description
Default
Modify
P03.22
Weakening
coefficient
in constant
power zone
Used when the motor is in flux-weakening
control.
T
f
0.1
Flux-weakening
coefficient of motor
1.0
2.0
Min. flux-weakening limit of motor
The function codes P03.22 and P03.23 are valid
at constant power. The motor enters the
flux-weakening state when the motor runs above
the rated speed. Change the flux-weakening
curvature by modifying the flux-weakening
control coefficient. The larger the coefficient, the
steeper the curve, the smaller the coefficient, the
smoother the curve.
P03.22 is valid only for vector mode 1.
Setting range of P03.22: 0.1–2.0
Setting range of P03.23: 10% –100.0%
0.3
○
P03.23
Lowest
weakening
point in
constant
power zone
20%
○
P03.24
Max.
voltage limit
P03.24 set the max. output voltage of the VFD.
Set the value according to onsite conditions.
Setting range: 0.0–120%
100.0%
◎
P03.25
Pre-exciting
time
Pre-exciting is performed for the motor when the
VFD starts up. A magnetic field is built up inside
the motor to improve the torque performance
during the start process.
Setting range: 0.000–10.000s
0.300s
○
P03.26
Flux-weake
ning
proportional
gain
0–8000
Note: P03.24–P03.26 are invalid only for vector
mode 1.
1000
○
P03.27
Speed
display
selection in
vector
control
0: Display the actual value
1: Display the set value
0
○
