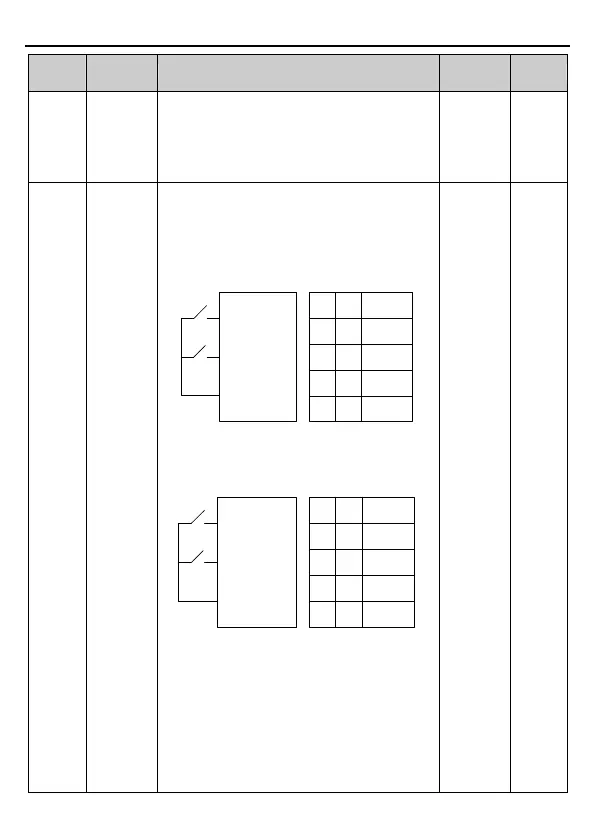

Goodrive30 Series VFD Function parameter list
-64-
Function
code
Name
Description
Default
Modify
BIT4: S5 virtual terminal
BIT5: S6 virtual terminal
BIT6: S7 virtual terminal
BIT7: S8 virtual terminal
BIT8: HDI virtual terminal
P05.13
Terminal
control
mode
The function code is used to set the mode of
terminal control.
0: Two-wire control 1, the enabling consistent
with the direction. This mode is widely used. The
defined FWD/REV terminal command
determines the motor rotation direction.
FWD
REV
COM
K1
K2
Running
command
FWD REV
OFF OFF
OFF
OFF
ON
ON
ON ON
Stopping
Hold on
Forward
running
Reverse
running
1: Two-wire control 2, the enabling separated
from the direction. In this mode, FWD is the
enabling terminal. The direction depends on the
defined REV state.
FWD
REV
COM
K1
K2
Running
command
FWD REV
OFF OFF
OFF
OFF
ON
ON
ON ON
Stopping
Stopping
Forward
running
Reverse
running
2: 3-wire control 1; This mode defines Sin as the
enabling terminal, and the running command is
generated by FWD, while the direction is
controlled by REV. During running, the Sin
terminal needs to be closed, and terminal FWD
generates a rising edge signal, then the VFD
starts to run in the direction set by the state of
terminal REV; the VFD needs to be stopped by
disconnecting terminal Sin.
0
