Goodrive30 Series VFD Function parameter list
-72-
Function
code
Name
Description
Default
Modify

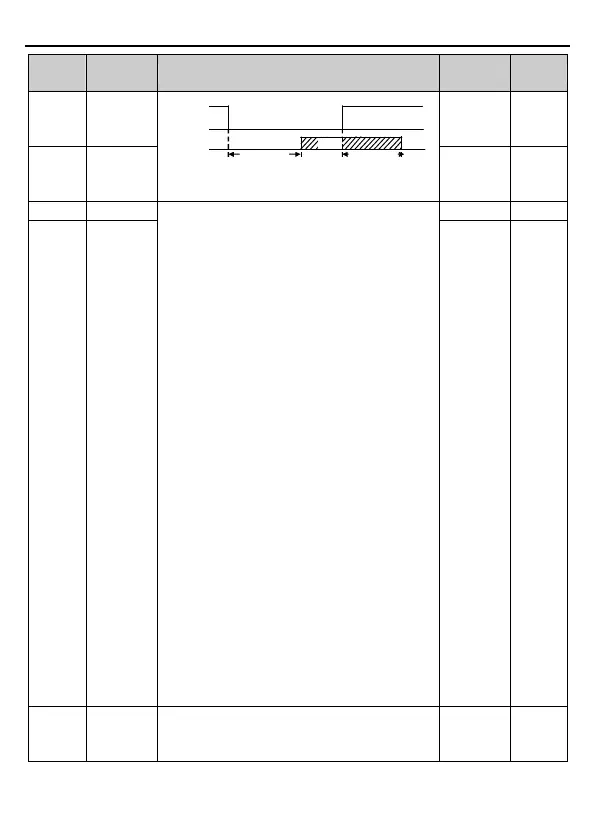

P06.12
RO2
switch-on
delay
RO electric level
RO valid Invalid
Switch on
delay
invalid
Valid
Switch off
delay
Setting range : 0.00050.000s
0.000s
P06.13
RO2
switch-off
delay
0.000s
P06.14
AO1 output
0: Running frequency
1: Set frequency
2: Ramp reference frequency
3: Running rotation speed (relative to twice the
rotation speed of the motor)
4: Output current (relative to twice the rated
current of the VFD)
5: Output current (relative to twice the rated
current of the motor)
6: Output voltage (relative to 1.5 times the rated
voltage of the VFD)
7: Output power (relative to twice the rated
power of the motor)
8: Set torque (relative to twice the rated torque of
the motor)
9: Output torque (relative to twice the rated
torque of the motor)
10: AI1 input
11: AI2 input
12: AI3 input
13: High-speed pulse HDI input
14: Value 1 set through Modbus communication
15: Value 2 set through Modbus communication
1621: Reserved
22: Torque current (relative to triple the rated
current of the motor)
23: Ramp reference frequency (with sign)
2430: Reserved
0
P06.15
AO2 output
0
P06.17
Lower limit
of AO1
output
The function codes define the relationship
between the output value and analog output.
When the output value exceeds the allowed
0.0%
