ISHIDA IP-AI - Scheme Table; Detail (Attrib.) Registration

4-38
Data Registration

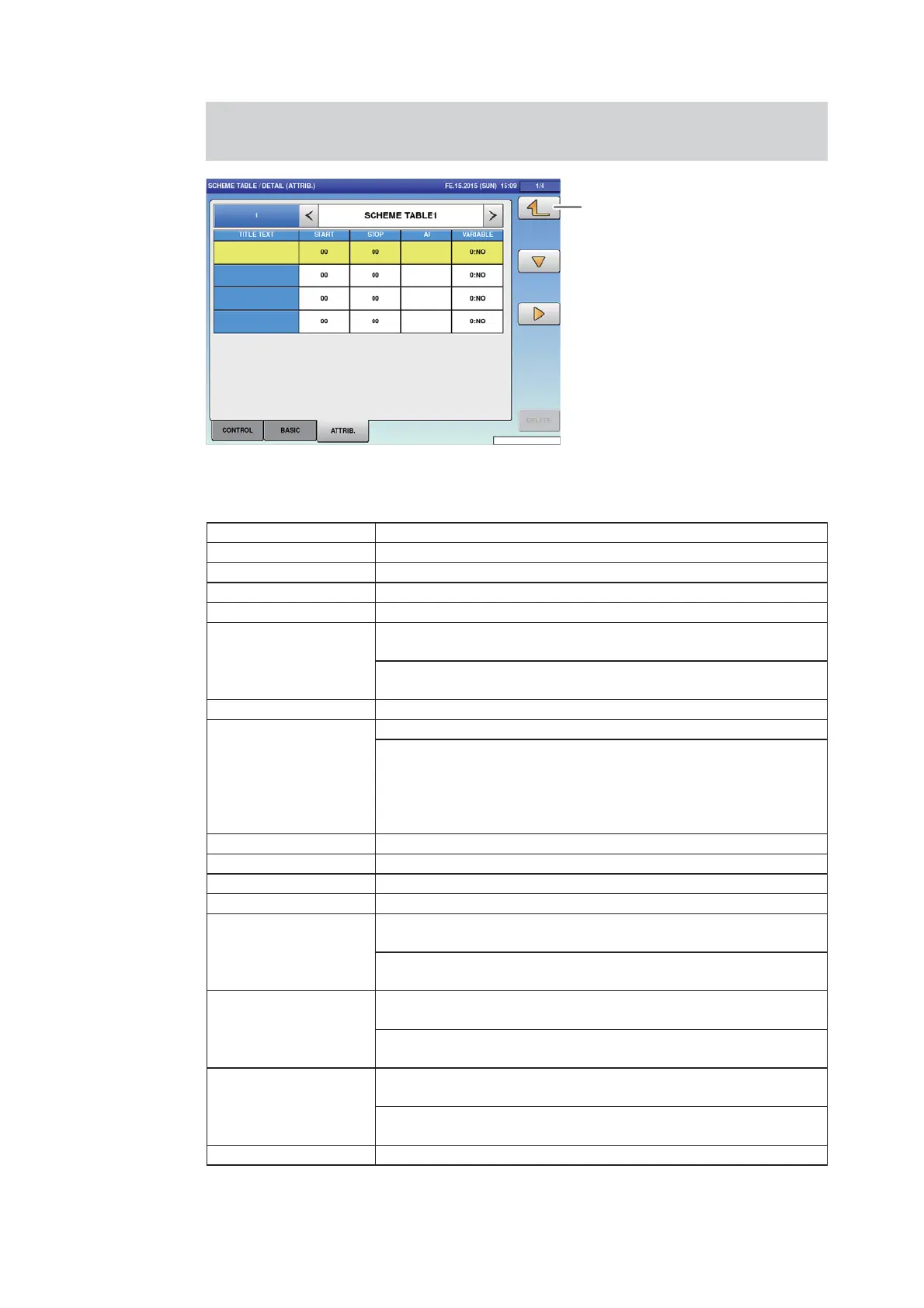

4.12.3 SCHEME TABLE / DETAIL (ATTRIB.)
REGISTRATION
■REGISTRATION METHOD FOR EACH ITEM
Select the required item and enter the details.
ITEM DESCRIPTIONS
TITLE TEXT Touch the fi eld to call out the text edit screen, and enter the title.
START Enter a numerical value and press this data fi eld.
STOP Enter a numerical value and press this data fi eld.
AI Enter a numerical value and press this data fi eld.
VARIABLE Press this fi eld to select whether the AI data is of variable length
or not.
0: No
1: Yes
MAX DIGIT Enter a numerical value and press this data fi eld.
TYPE Press this fi eld to select the data type for the attribute.
0:REF
1:MULTIPLE
2:REF+DATA
3:DATA
4:GEN
REF. DIGIT Enter a numerical value and press this data fi eld.
MAX NUM Enter a numerical value and press this data fi eld.
ATTR. ID Enter a numerical value and press this data fi eld.
DATA TEXT Touch the fi eld to call out the text edit screen, and enter the text.
MANDATO. Press this fi eld to select whether the data is a mandatory item or
not.
0: No
1: Yes
CONDITIONAL Press this fi eld to select whether the AI data is of variable length
or not.
0: No
1: Yes
CR Press this fi eld to select whether the AI data is of variable length
or not.
0: No
1: Yes
CHAR CNT Enter a numerical value and press this data fi eld.
Returns to the PLU List screen.
