USER MANUAL
8

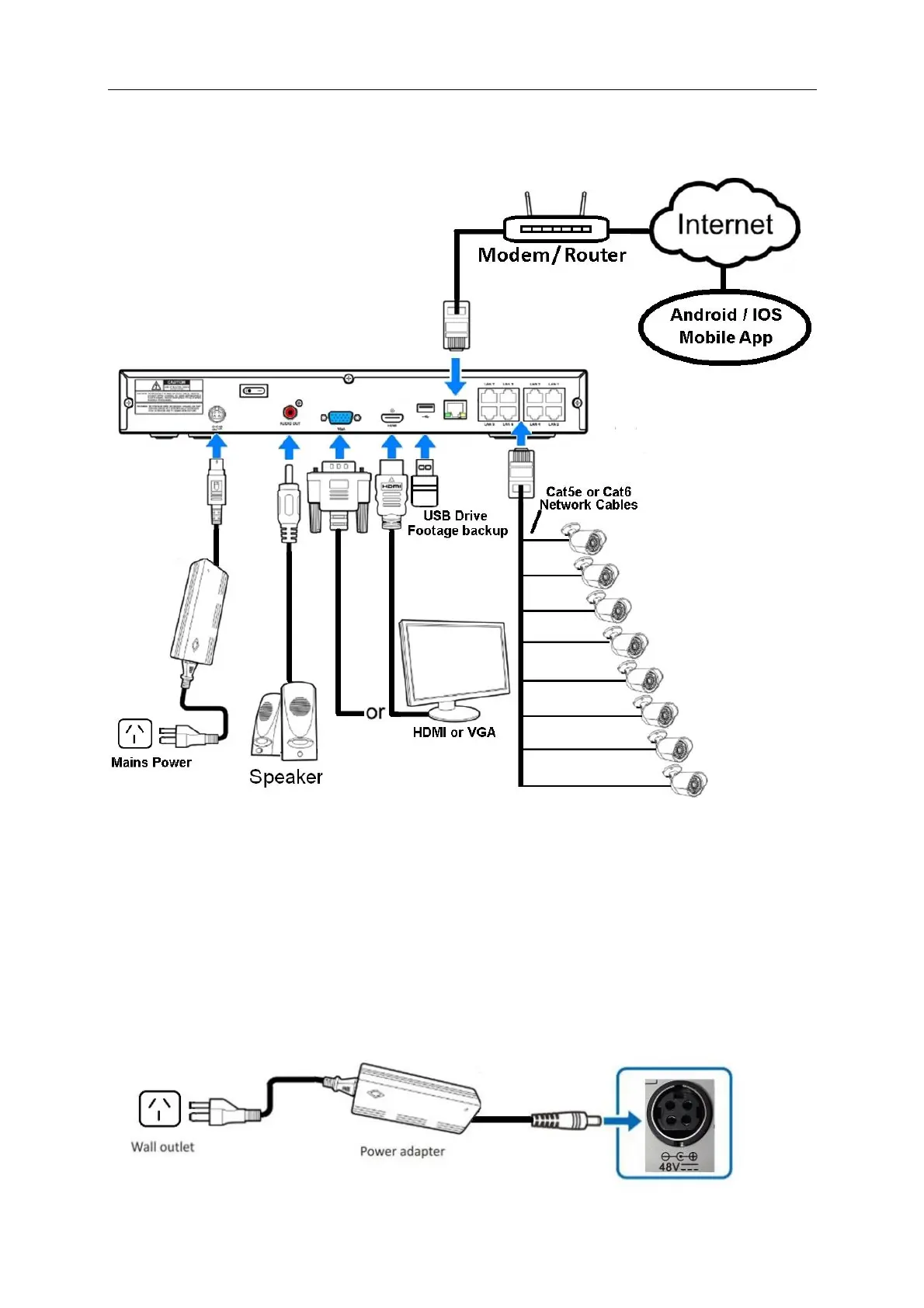

2.2 Connection Diagram
Note: The above diagram is for reference only. The location of various connections will be different
depending on the NVR you have purchased.
2.3
Power Supply
Caution: Only use the power adapter that was supplied with the NVR
Connect one end of the power adapter to the power connector on the back of the NVR. Plug the other
end of the power adapter into the wall outlet (NR308X* and NR316X* scenario shown below).
Speaker
