4.3.2 PTZ Control
PTZ control allows you to control your PTZ (up, down, left, right or zoom /focus) or a camera with a
motorised lens (Zoom / Focus)
1) Left mouse click on the PTZ channel in the Live Viewing screen to open Camera Quick Toolbar,
and choose the PTZ control icon .

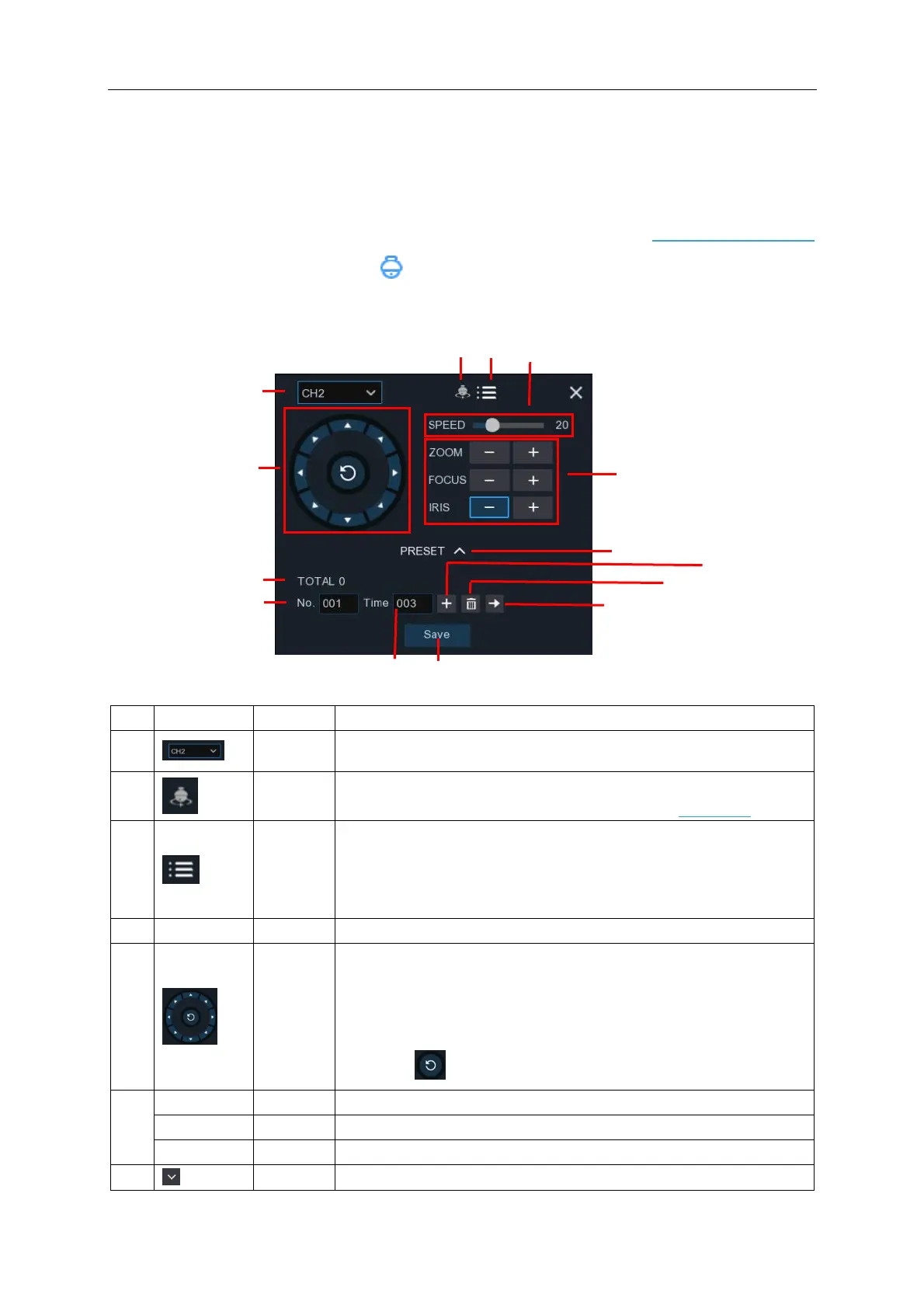

2) PTZ control panel will be displayed.
No.
Icon
Item
Description
1
Channel
Click to select the channel of the PTZ camera.
2
Cruise
Start / stop PTZ cruise by preset points. Make sure you had
enabled the Cruise function for this channel in 5.1.4 PTZ.
3
UTC
Menu
If you have chosen protocol for this channel as COAX1 or
COAX2, the UTC menu button will be display. Click this icon to
enter UTC OSD menu. It is also the confirm button for your
selection in the UTC OSD menu.
4
Speed
Speed
Adjust the PTZ speed
5
Pointer
Panel
A) Click the direction arrow to select the direction of the PTZ
camera
B) Click up/down/left/right arrow to move cursor in UTC OSD
menu
C) Click to switch to auto pan mode
6
- ZOOM +
Zoom
Click to zoom in/out.
- FOCUS +
Focus
Click to adjust the focus
- IRIS +
Iris
Click to adjust the iris setting
7
PRESET
To display or hide the preset point panel
