USER MANUAL

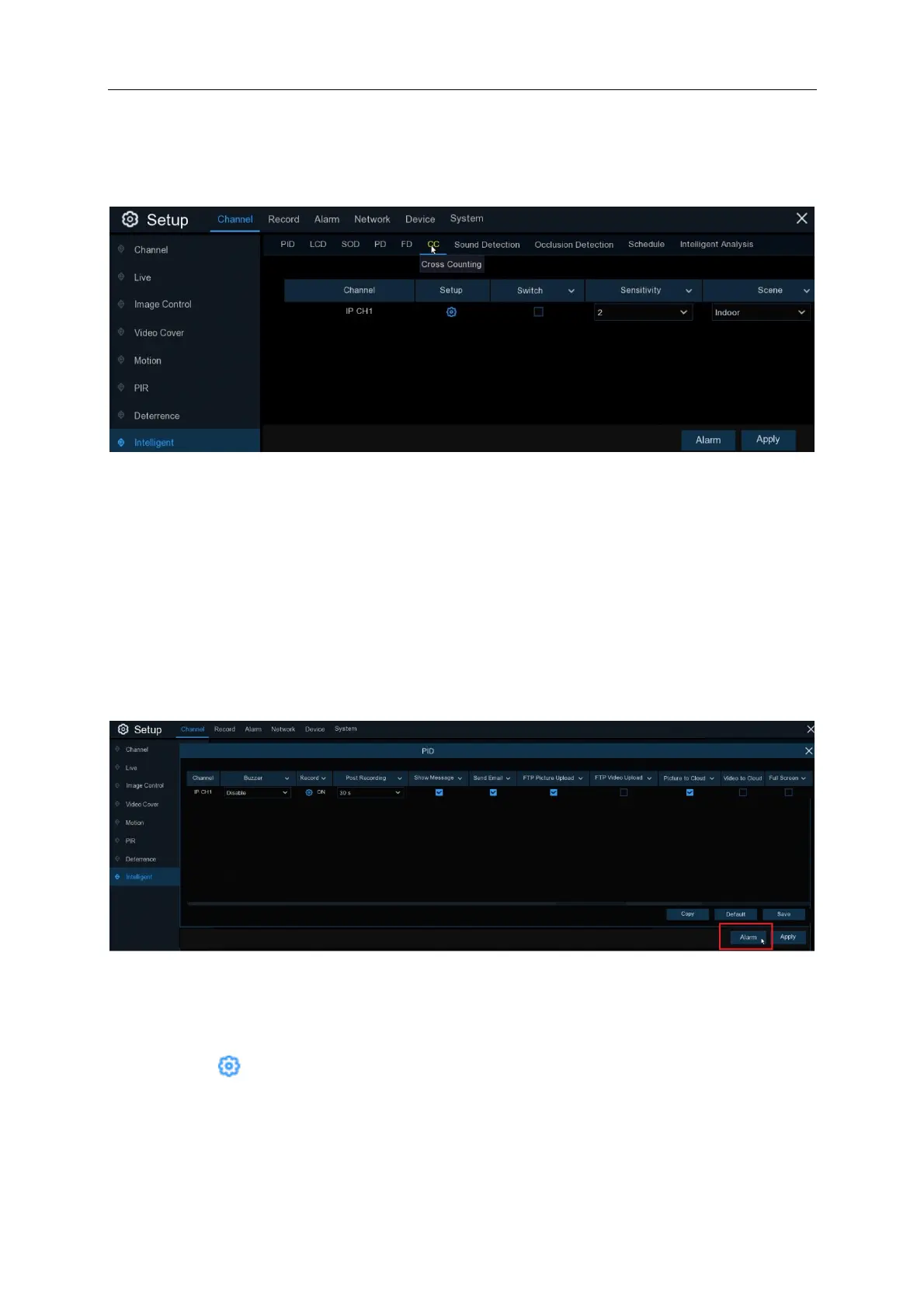

5.1.8.6 CC (Cross-Counting)
Cross-Counting function counts the times for moving objects or people across the virtual lines.
Channel: to select the channel you want to configure
Switch: to enable or disable the CC function
Sensitivity: The sensitivity level is from 1 to 4, with a default value of 2. Higher sensitivity will be
easier to trigger the detection.
Scene: Scene setting includes Indoor and Outdoor. Please choose the scene to match with the
place your camera installed.
Click on the “Alarm” button on the bottom right hand of the screen for the menu (below) to appear
Buzzer: to disable or to active the buzzer to emit an alarm tone in 10, 20, 40 or 60 seconds when
the detection is triggered
Record: Click icon and choose which channel(s) you want to record when the PID event is
triggered.
