Routine Maintenance
Electrical System
143 143
9811-3400-4
T034230-1

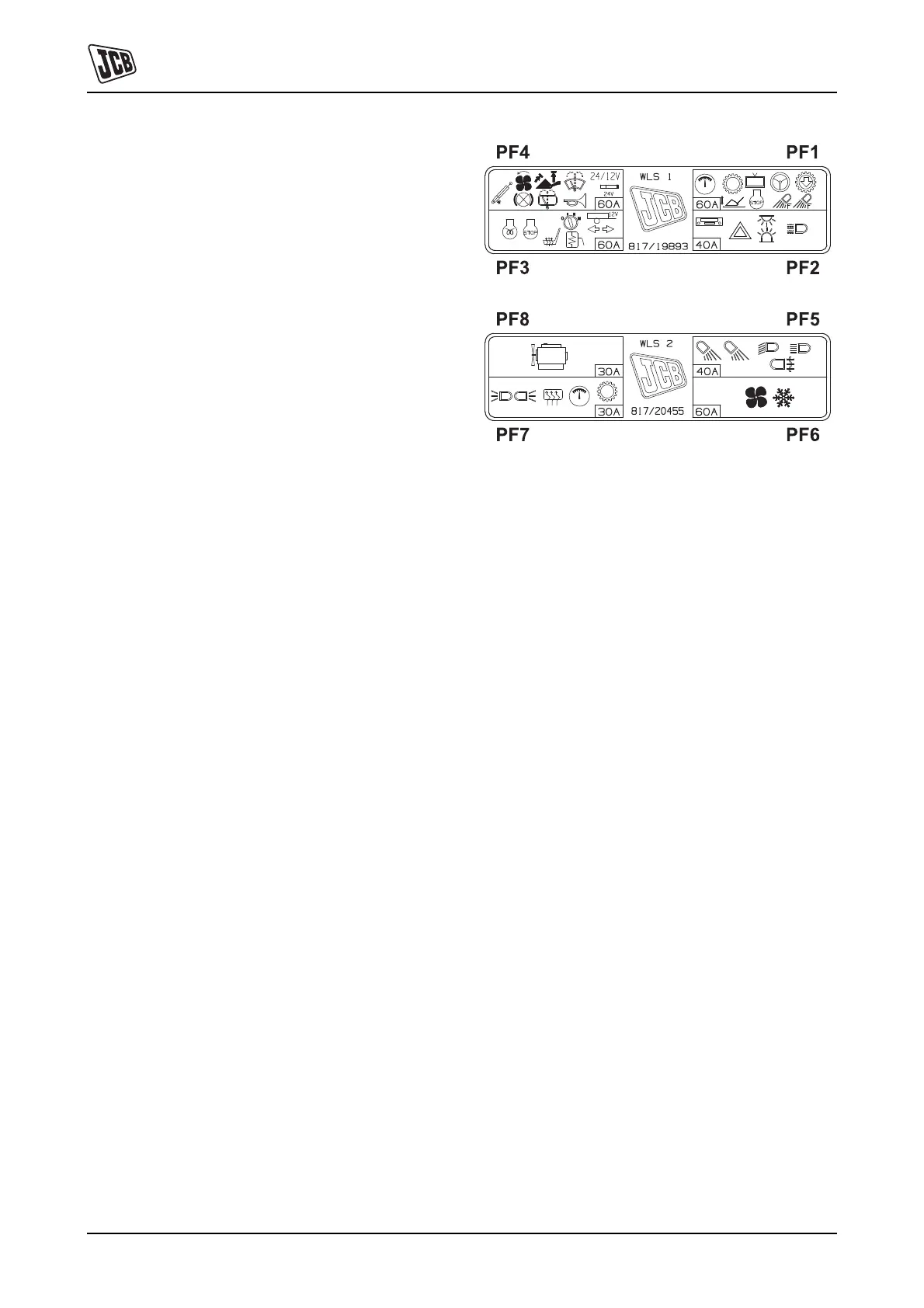

Fig 90.
Fuse Circuit(s) Protected Rating
PF1 Front Work Lights 60A
Ignition 1
EMS (Ignition Feed)
ZF Computer (Ignition Feed)
ACCS
Reversing Camera
Emergency Steer System
ESOS and Immobiliser
Reverse Alarm and Lights
Blank
PF2 Hazard Indicators 40A
Beacon and Interior Light
Radio (24V)
Headlight Flash
PF3 Ignition 60A
Roadlight Illumination
PF4 Cigar Lighter 60A
Loader Auxiliaries, Quickhitch and
Servo Isolator
Rear Wash/Wipe
Front Wash/Wipe and Horn
24/12V Dropper (Radio, Cigar Lighter
and Auxiliary.)
Reverse Fan
Brake Lights and Tow Hitch Solenoids
Shovel and Arm Reset
PF5 Rear Work Lights 40A
Roadlight Switch (Headlights)
PF6 Heater Motor 60A
Air Conditioning Compressor
PF7 Right Hand Sidelights 30A
Left Hand Sidelights
Heated Rear Screen
EMS (Battery Feed)
ZF Computer (Battery Feed)
PF8 Engine ECU 30A
To Next Page
