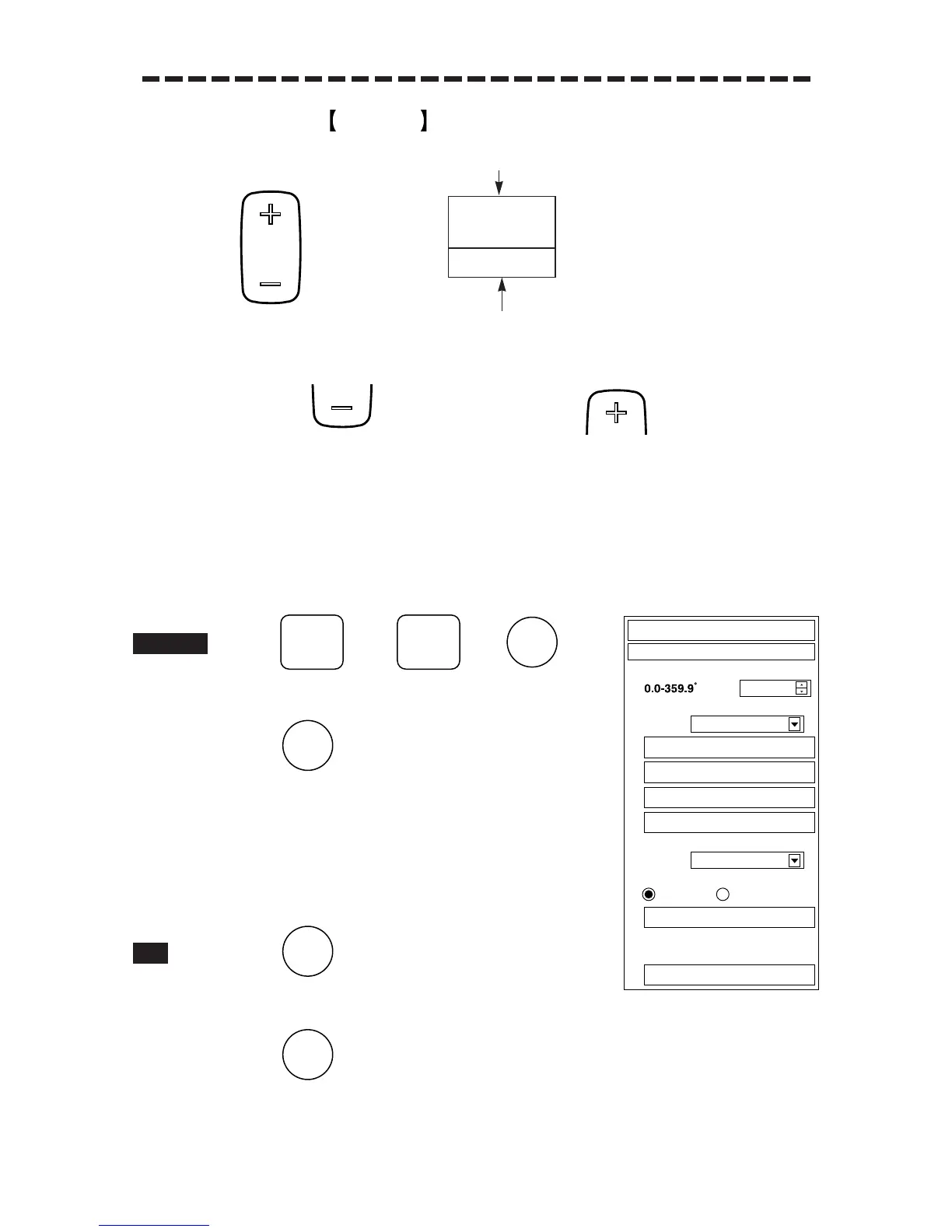

……Select Range RANGE ……………………………………………
Any range scale is selectable from 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48 and 96 (or 120) (nautical
miles). Pressing decreases the range and pressing increases the range in each
step. The range scale selected is indicated at the upper left of the display together with the range ring
interval linked with it.
……Set Maximum Range …………………………………………………
The maximum range available may be set to 96 nm or 120 nm.
1 Press , then and .
The SETTING1 Menu will appear.
2 Press .
Each time this switch is pressed, the maximum range is changed
between 96 nm or 120 nm.
Note: When the maximum range is set to 120 nm, the next
range of 48 nm is 120 nm and so the range of 96 nm
cannot be selected.
1 Press .
The Sub1 Menu will reappear.
2 Press .
The Sub1 Menu will be closed.
0
0
Exit
8
1
MENU
MENU
Procedures
RANGE
SUB1 MENU
SETTING1
2.SELECT SPEED
4.
1.SET GYRO
0.
EXIT
3.
SET MANUAL SPEED
SELECT NAV
5.
SET/DRIFT
6.
TIME/DAY
9.
SETTING2
0.0
2. 1AXIS
7.PRF
2. HIGH
8.RANGE SELECT
96nm 120nm
2
Range Scale (NM)
Range Marker (NM)
12
