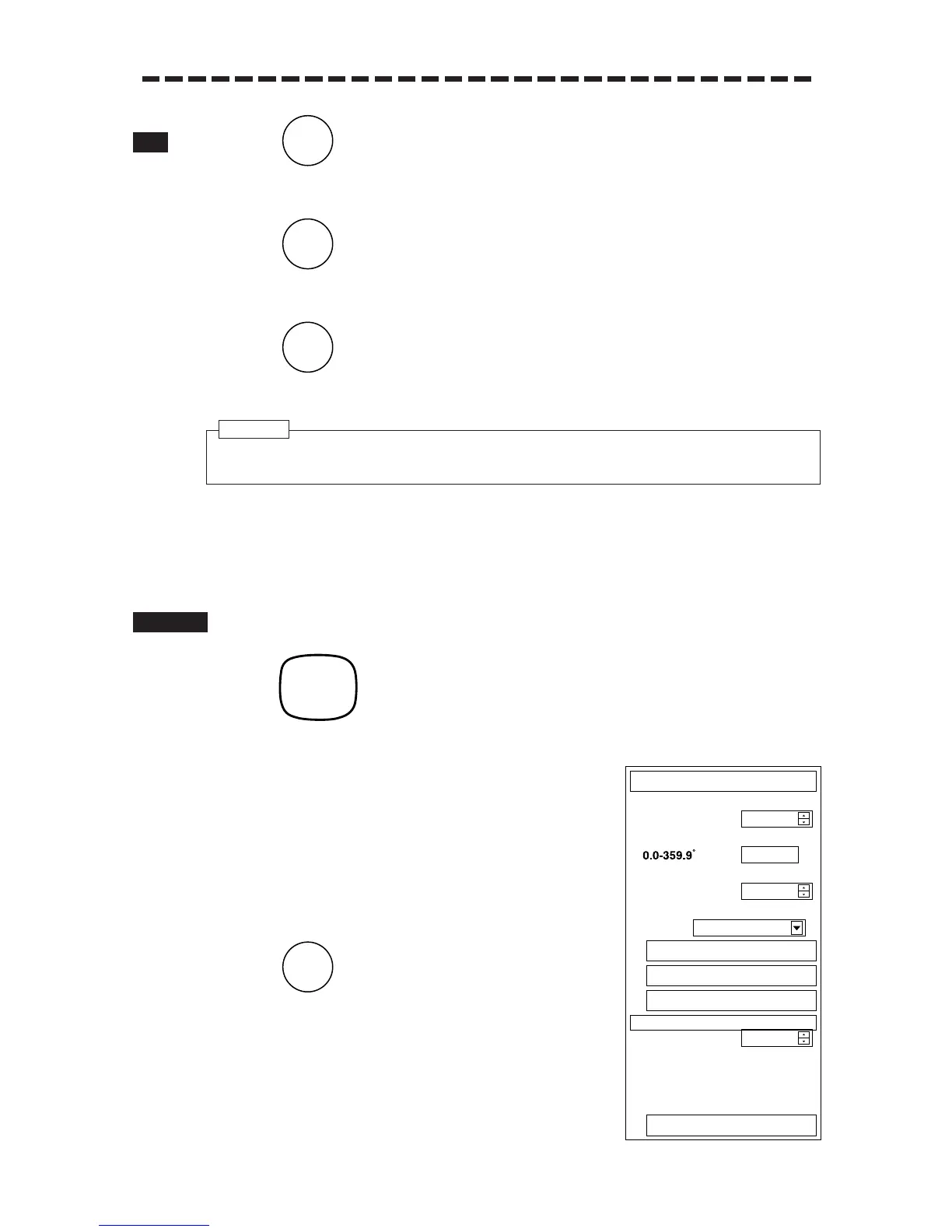

JRC JMA-9822-6XA User Manual

8 – 47
1 Press .
The SETTING1 Menu will reappear.
2 Press .
The Sub1 Menu will reappear.
3 Press .
The Sub1 Menu will be closed.
……Adjustment of Performance Monitor (NJU-63/64) ………………
1 Set the radar to Master Radar when the Interswitch is installed.
2 Press to display VRM1 and set the range of VRM1 to 16 - 18
*
NM.
* Set the range to 16 to 18 NM when a waveguide is installed between the scanner unit and the
transmitter-receiver unit. (X band radar)
* Set the range to 18 NM when the transceiver unit is
incorporated in the scanner unit or in case of operating the S
band radar.
3 Carefully read Section 8.5, adjustments before opening
the ADJUST menu.
4 Press .
“8.PM PRESET” will be set and the radar will automatically be
set to RM, OFF CENTER OFF, IR OFF, PROCESS OFF,
TGT ENH OFF, FUNCTION OFF and 24 NM range.
8
VRM1
Procedures
0
0
0
Exit
● Time correction is not available when the “ZDA” sentence of NMEA0183 is not received.
Attention
ADJUST
2.BEARING
4.ANTENNA HEIGHT
1.TUNE
0-63
3.RANGE
0-999
0.
EXIT
5.
ARPA
6.
ISW
32
510
3. OVER 25m
000.0
7.
MBS
8.PM PRESET
0-127 30
