5.8 TRIAL MANEUVERING
..
...
……Trial Maneuvering in the Relative Vector Mode …………………

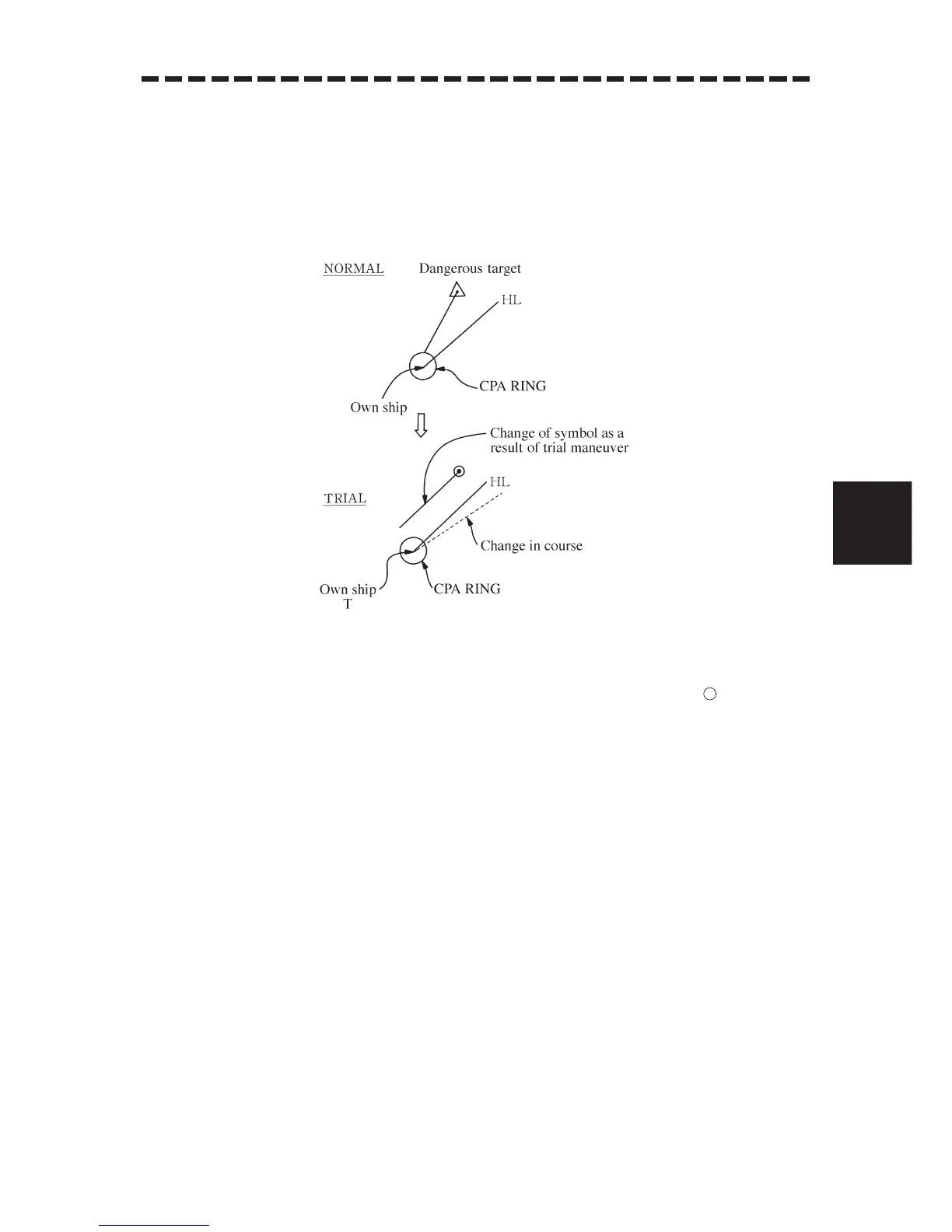

The result of trial maneuvering in the Relative Vector mode is shown by a change in target vector. In
the figure below (in the same conditions as in the True Vector mode in the previous page), it is seen that
the acquired target is a dangerous one because its vector is crossing the CPA RING.
The above figure shows that the relative vector of the target has changed as shown in the figure as a
result of simulation (course and speed), so that the target’s symbol is changed into “ ”, a safe target.
The data display field indicates the current values of CPA LIMIT and TCPA LIMIT, not those as the
result of simulation, same as in the True Vector mode.
The course change of own ship is displayed as a dotted-line.
