JRC JMA-9822-6XA User Manual

5 – 37

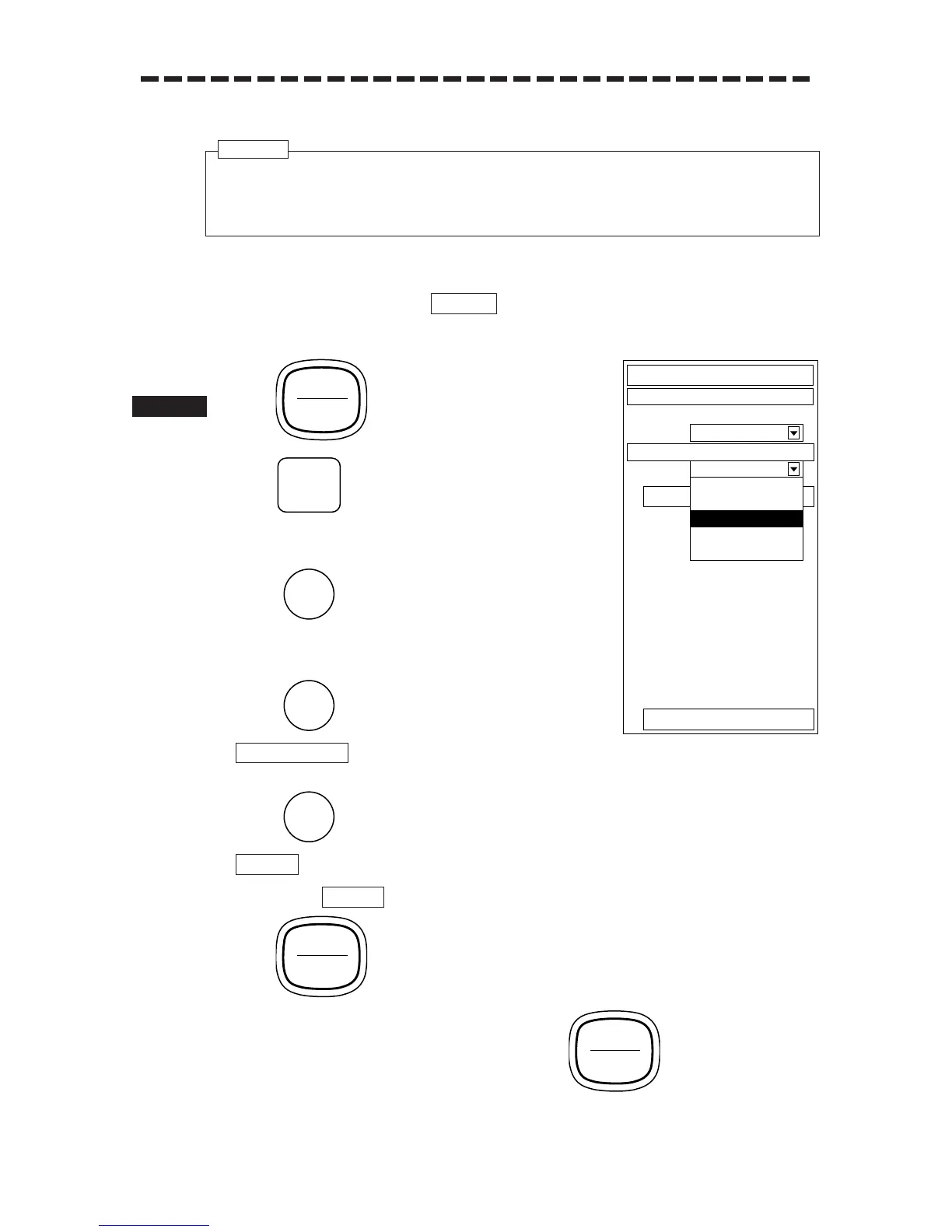

……Test Video ………………………………………………………………
Test Video is used to check whether the video signals under target acquisition and tracking are inputted
to and processed in the target processing circuit normally.
However, it is sufficient to check that in TEST VIDEO is displayed.
The start of the Test Video mode is available only in the Standby mode.
1 Press to set the standby mode.
2 Press .
The TEST Menu will appear.
3 Press .
The ARPA TEST Menu will appear.
4 Press .
will be selected and the pull-down menu will appear.
5 Press .
will be set.
Test video for (video input in quantizing HIGH level) will appear on the radar display.
6 Press to set the transmission mode.
7 When changing the type of the test video, press to set the standby
mode, then enter the test video number with the ten-key.
TX
STBY
TX
STBY
3. VDH
3. VDH
3
2.TEST VIDEO
2
3
TEST
TX
STBY
Procedures
3. VDH
TEST MENU
ARPA TEST
2.TEST VIDEO
1.SIMULATOR
0.
EXIT
3.
STATUS
3. VDH
1. OFF
1. OFF
2. VDG
5. VDIN
4. VDL
3. VDH
● TEST VIDEO may not appear for targets that are not acquired nor tracked, or if the controls
[GAIN] or [SEA] control are adjusted properly.
Attention

JRC JMA-9822-6XA Specifications

General

Brand	JRC
Model	JMA-9822-6XA
Category	Marine Radar
Language	English
