4 – 1
……Measurement b
y T
rac
kball
…………………………………………
1
Check the target echoes on the radar display.
2
Move the cross cursor mark to a target by the trackball.
The
CURSOR
on the radar display indicates the bearing and range of the target. The range is a
distance from own ship’s position.

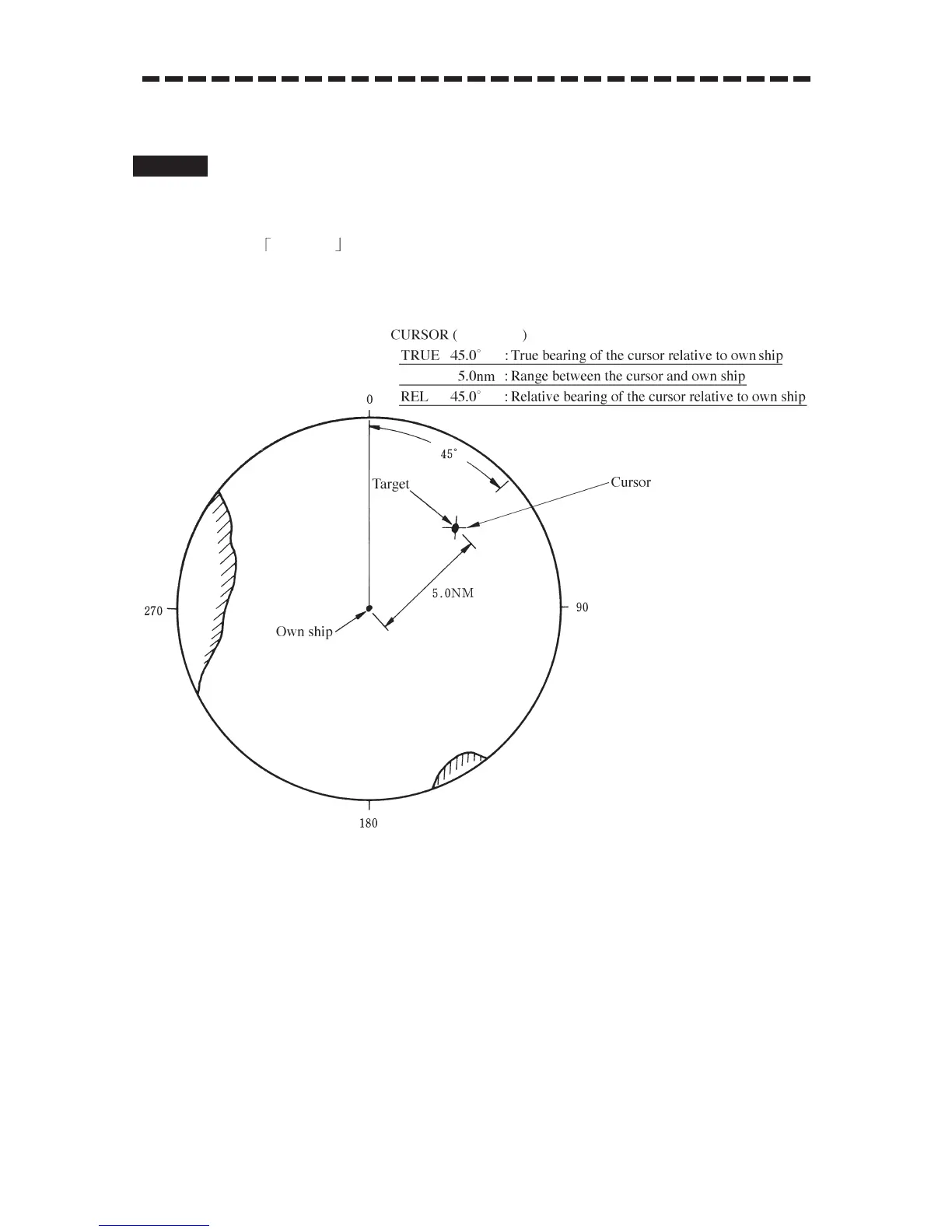

Fig.4.1
Procedures
179
181
