JRC JMA-9822-6XA User Manual

3 – 102
3
3.4 BASIC OPERATIONS
.
..
Example
Assuming that the maximum range of the initial PM pattern is rBmax = 18 NM according to the
INFORMATION LABEL, and if that of the current PM pattern is rAmax = 16 NM, the fall value
is -R (rmax) = 5 dB, referring to Calibration Curve II.
This means that the receiving system has a sensitivity fall of approx. 5 dB.

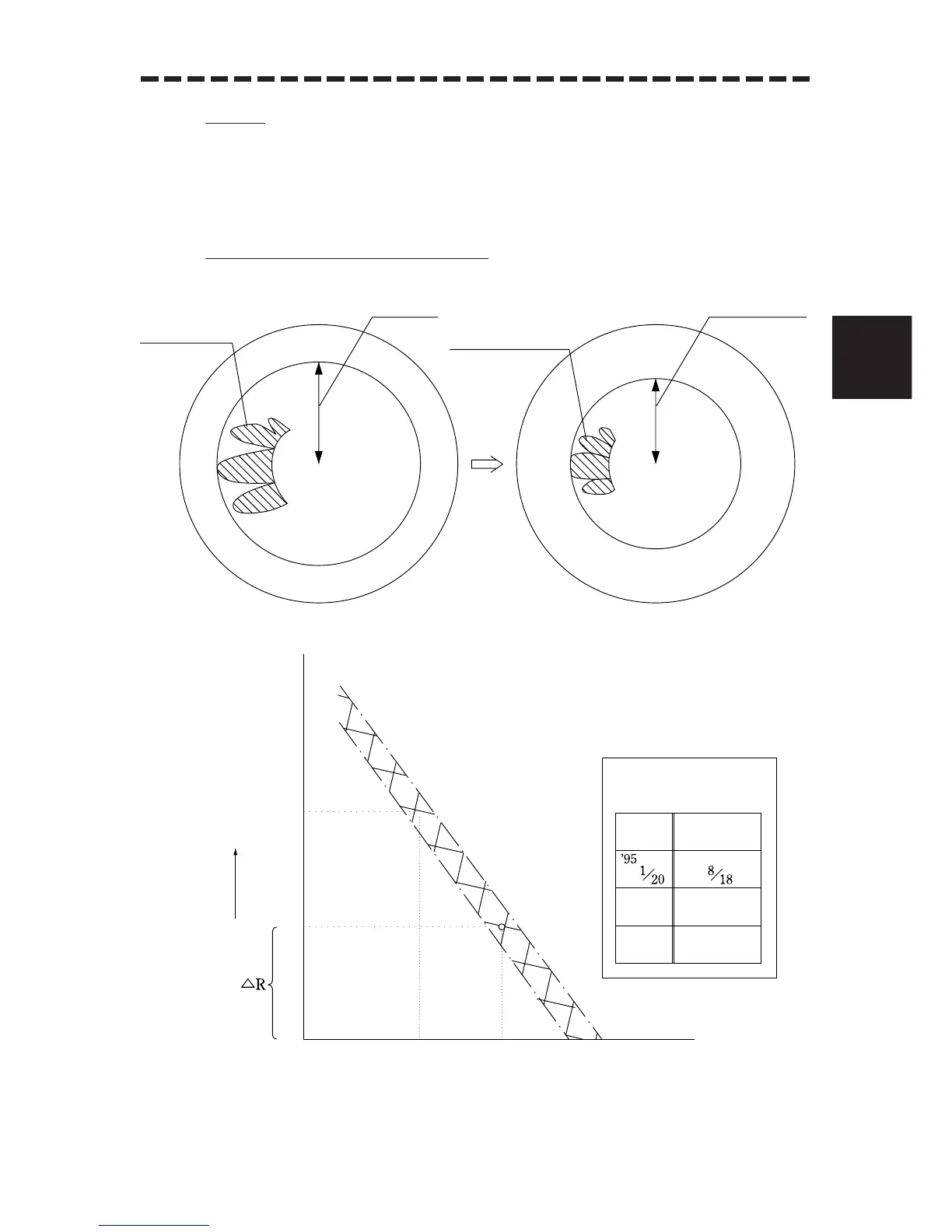

Example of Checking Receiption System
Fig. 4
PERF. MONITOR
INFORMATION LABEL
DATE
BAR LENGTH
Calibration Curve II
rAmax rBmax
PM pattern maximum range (rmax)
dB
0
0
2
4
6
8
10
12
14
16
1614
151312 17 18 (NM)
Sensitivity fall value R (rmax)
18NM
Initial PM pattern
Approx. 16 NM
Current PM pattern
