1 – 16
1
1.4 EXTERIOR DRAWING
.

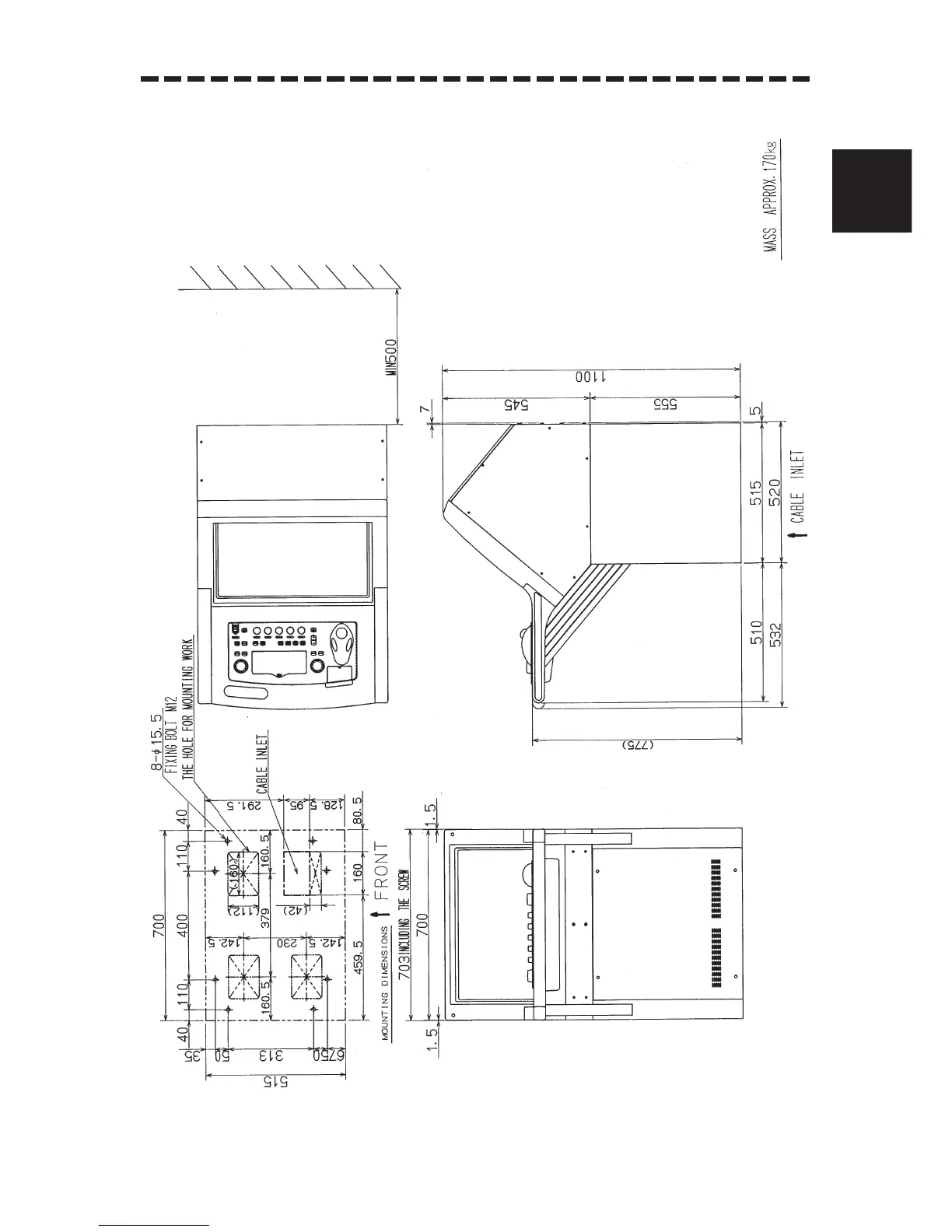

Fig.1.9 EXTERIOR DRAWING OF DISPLAY UNIT,
TYPE NCD-4111 (SELF-STANDING TYPE)
(Unit: mm)
