JUMO TYA 202 - 10 Technical Data; Voltage Supply, Load Current; Electrical Isolation

2011-07-01/00561073 [SCR Power Controller TYA202] 101
10 Technical data
10.1 Voltage supply, load current
10.2 Electrical isolation
Voltage supply Corresponds to the load voltage selected for the device type
Control section power consumption max.20 VA
Load voltage U
L eff
AC 24V -20%...+15%, 45 ...63 Hz
AC 42V -20%...+15%, 45 ...63 Hz
AC 115V -20%...+15%, 45 ...63 Hz
AC 230V -20%...+15%, 45 ...63 Hz
AC 265V -20%...+15%, 45 ...63 Hz
AC 400V -20%...+15%, 45 ...63 Hz
AC 460V -20%...+15%, 45 ...63 Hz
AC 500V -20%...+15%, 45 ...63 Hz
Load current I
L eff
AC 20, 32, 50, 100, 150, 200, 250A

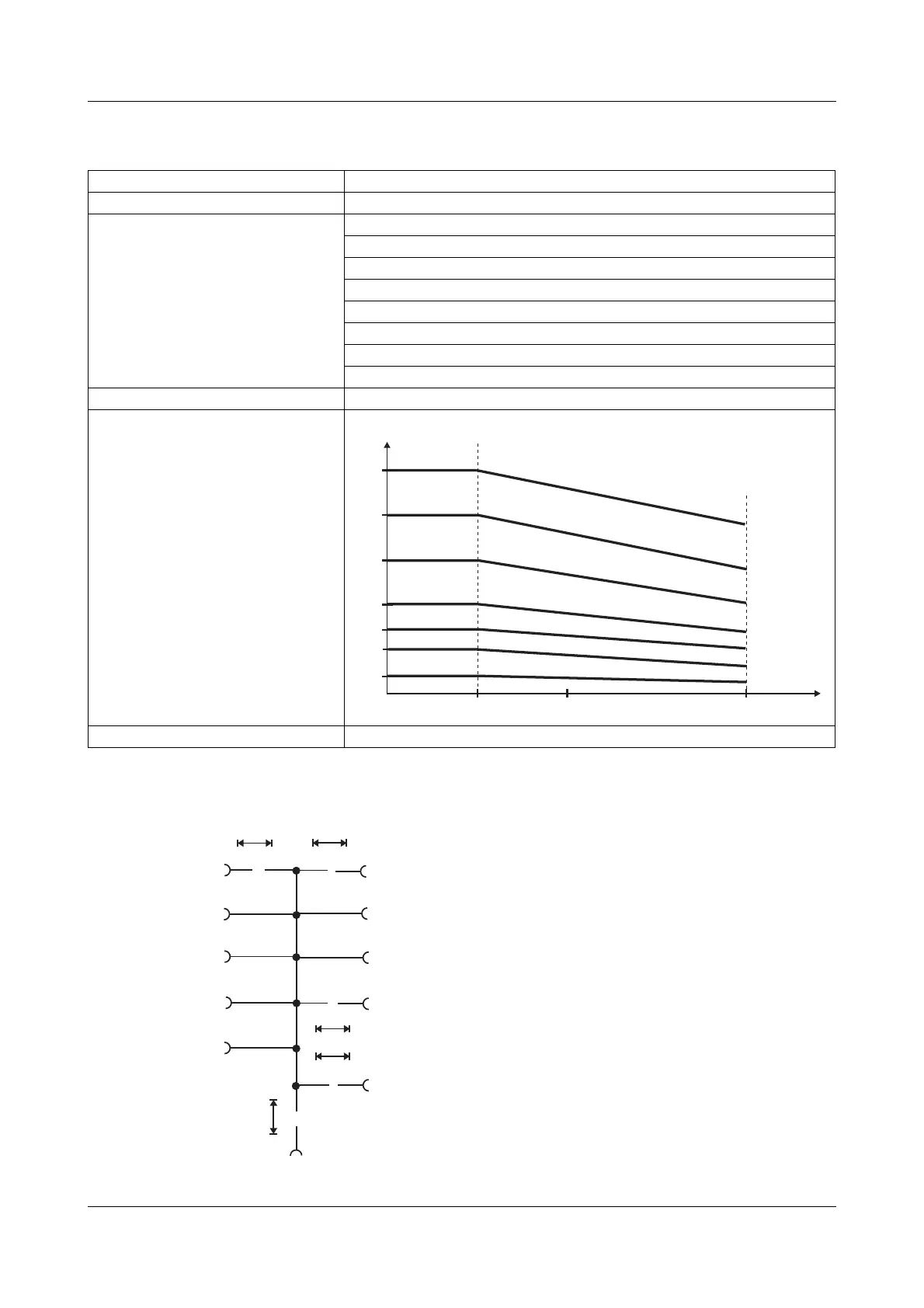

Permissible load current
depending on the
ambient temperature
Load type Resistive and resistive/inductive loads
45 50 60
75
20
200
T/°C
150
Load current/A
Reduction at a temperature of 45°C:
2%/Kelvin
70%
250
100
50
»
»
AC 3800 V
»
AC 3800 V
AC 350 V
»
»
AC 350 V
PROFIBUS DP
RS422/485
or
serial interface
Actual value output
standard signal
Voltage output
DC 10V
Binary output
Relay or optocoupler
Load connection
U1, U2
Display and Keypad
Binary input 1, 2
floating contact
USB Interface
Analog input
0(4)...20mA
Analog input
0(2)...10V, 0...5V
or SSR
Voltage supply
