8 Fault messages and alarms
8.1 Binary signal for collective fault
This signal is used for controlling the binary output and LED K1, and can also
be read out from the power controller via the interfaces.

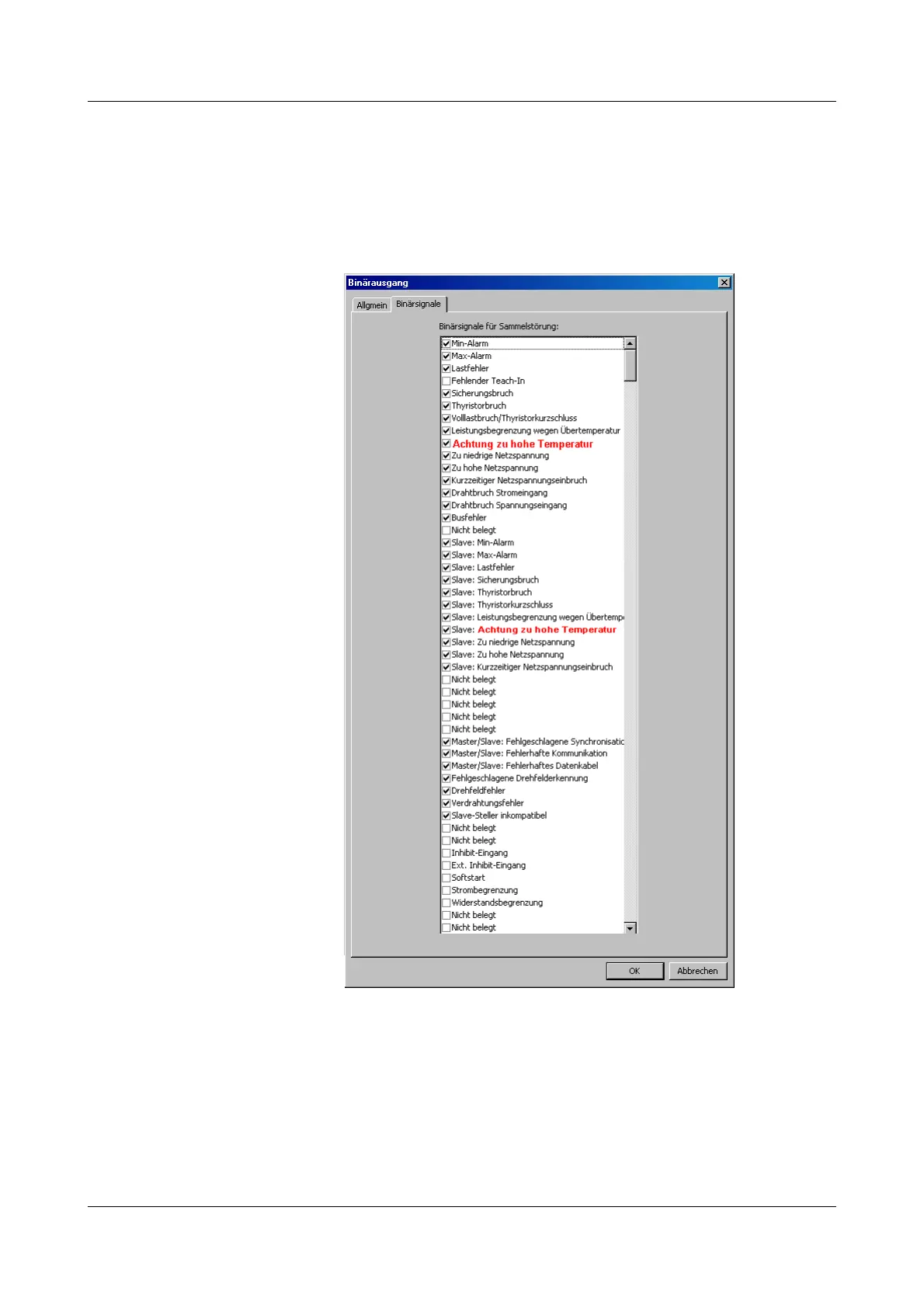

Using the setup program it is possible to configure which events (alarm and er-
ror messages) are to be grouped together as a binary signal for a collective
fault.
All error message are OR-linked and output as a binary signal for collective
fault on the relay output or optocoupler.
In addition, LED K1 lights up yellow.
This alarm can switch a relay at the binary output.
