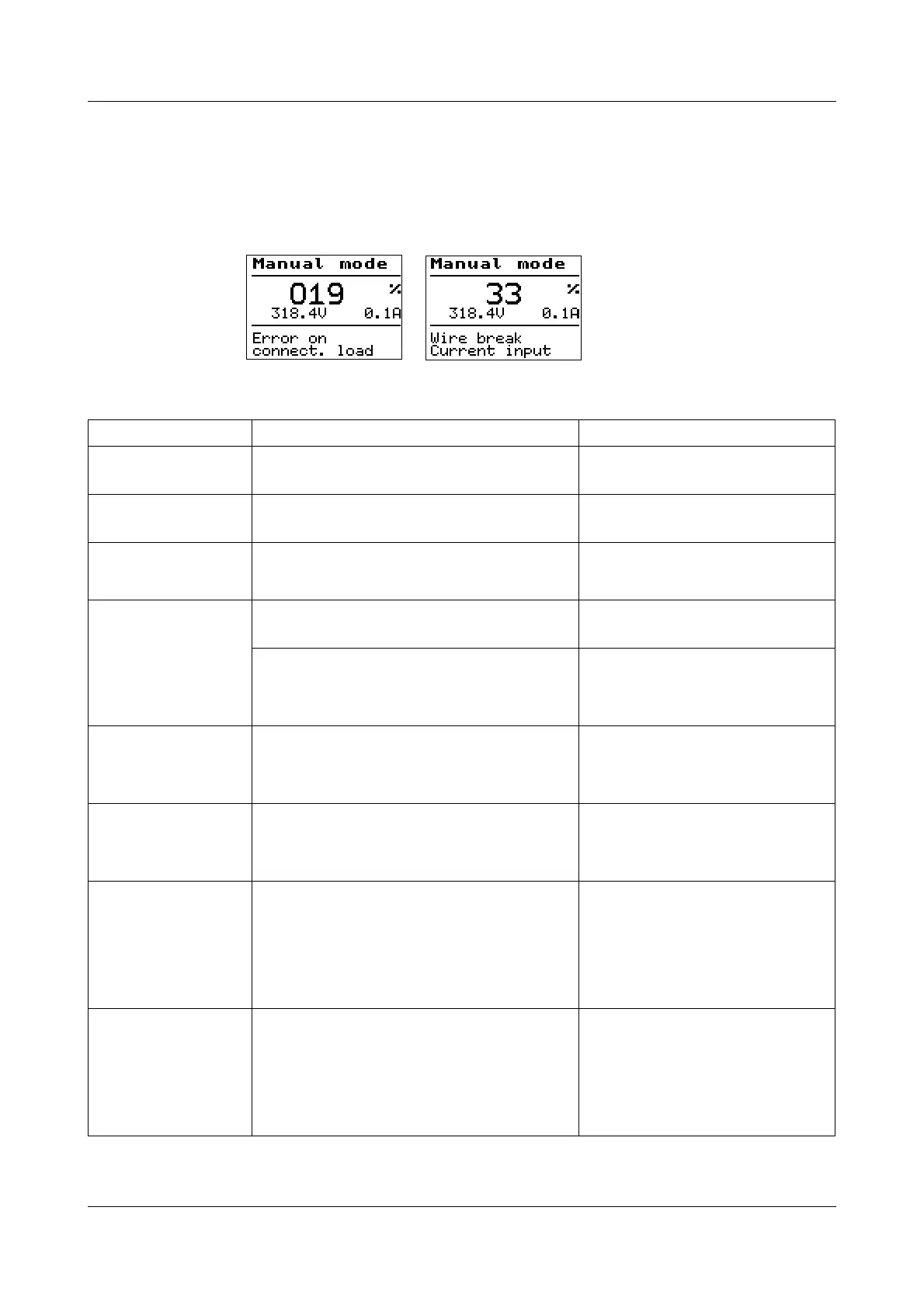

8 Fault messages and alarms
Cyclical
representation
The symbols for input, cascade control and operating mode are displayed al-
ternately in the info line together with error messages or information about
particular statuses.
v Chapter 8 „Fault messages and alarms“
Examples
Error message Cause Remedy
Limit value monit.
min. value reached
The value has gone below the set limit
value for the min. alarm
-
Limit value monit.
max. value reached
The set limit value for the max. alarm has
been exceeded
-
Fault at
connected load
Break or short-circuit of a load resistor.
v Chapter 6.1 „Detection of load faults“
Replace defective heating ele-
ments.
Malfunction
Fuse break
(red LED fuse is lit)
1. Semi-conductor fuse defective v Chapter 8.2 „Replace defec-
tive semi-conductor fuse“
2. No voltage at terminal U1 - Check wiring
- Check the line fuse for the
load circuit
Malfunction
SCR breakage
SCR defective The device must be returned to
JUMO for repair.
h Return the device
SCR
short-circuit
SCR defective The device must be returned to
JUMO for repair.
Return the device
Attention!
High temperature
Device temperature is higher than 100°C - Ensure adequate ventilation
- Reduce load current
- Use SCR power controller
with higher maximum load
current
Limitation is active,
high temperature
Device temperature is higher than 105°C
device is too hot, power is reduced!
- Ensure adequate ventilation
- Reduce load current
- Use SCR power controller
with higher maximum load
current
