JUMO TYA 202 - Performing Teach-In in Manual Mode

2011-07-01/00561073 [SCR Power Controller TYA202] 69
6 Special device functions

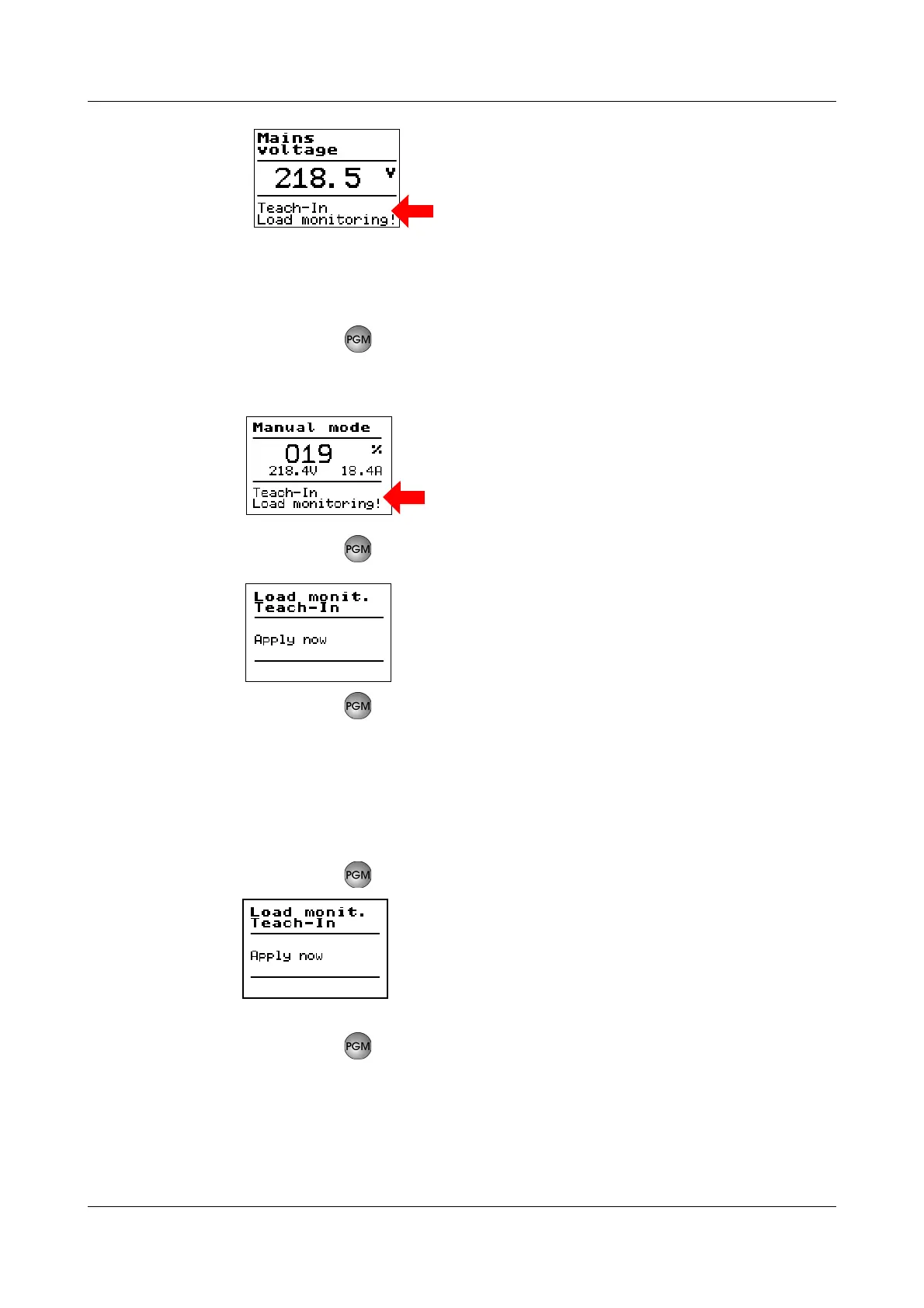

6.2.3 Performing teach-in in manual mode
The power controller is in the level "Measured value overview".
h Press the key 2 x to return to manual mode.
If the teach-in is being performed for the first time, the message "Teach-in load
monitoring" appears in the bottom line of the display.
h Press the key and the following message will appear:
h Press the key and the current load status will be applied as the OK
status.
Any change in the load (load error) will be evaluated by the device on the basis
of this status.
Repeat the
teach-in
The teach-in can be repeated any number of times in manual mode.
h Press the key and the following message will appear:
h Press the key and the current load status will be applied as the OK
status.
