8 Fault messages and alarms
8.2.1 Accessories: Semi-conductor fuses
The design of the semi-conductor fuse differs according to the device type.

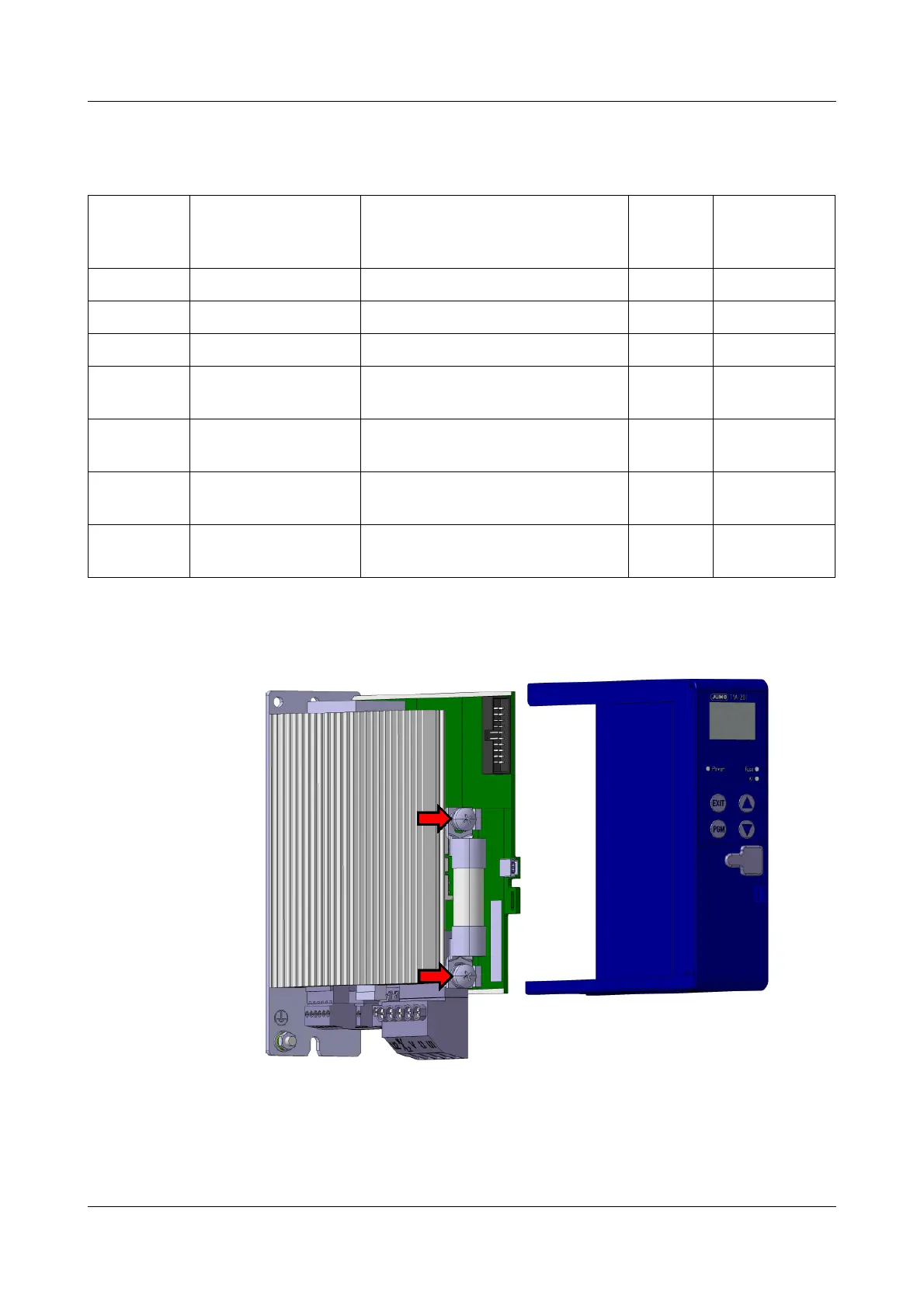

8.2.2 Semi-conductor fuses type 709062/8-0X-20...
Power
controller
type
Tripping current Screws Tighten-
ing
torque
Sales
number
20A Tripping current: 50A Recessed head 3Nm 70/00513108
32 A Tripping current: 80A Recessed head 5Nm 70/00068011
50A Tripping current: 80A Recessed head 5Nm 70/00068011
100A Tripping current:
160A
Hexagon head, width across flats
10 mm
5Nm 70/00081801
150A Tripping current:
350A
Hexagon head, width across flats
13 mm
12Nm 70/00083318
200A Tripping current:
350A
Hexagon head, width across flats
13 mm
12Nm 70/00083318
250A Tripping current:
350A
Hexagon head, width across flats
13 mm
12Nm 70/00083318
