JUMO TYA 202 - Wall Mounting with Screws (Ex Factory)

2 Installation
18 2011-07-01/00561073 [SCR Power Controller TYA202]

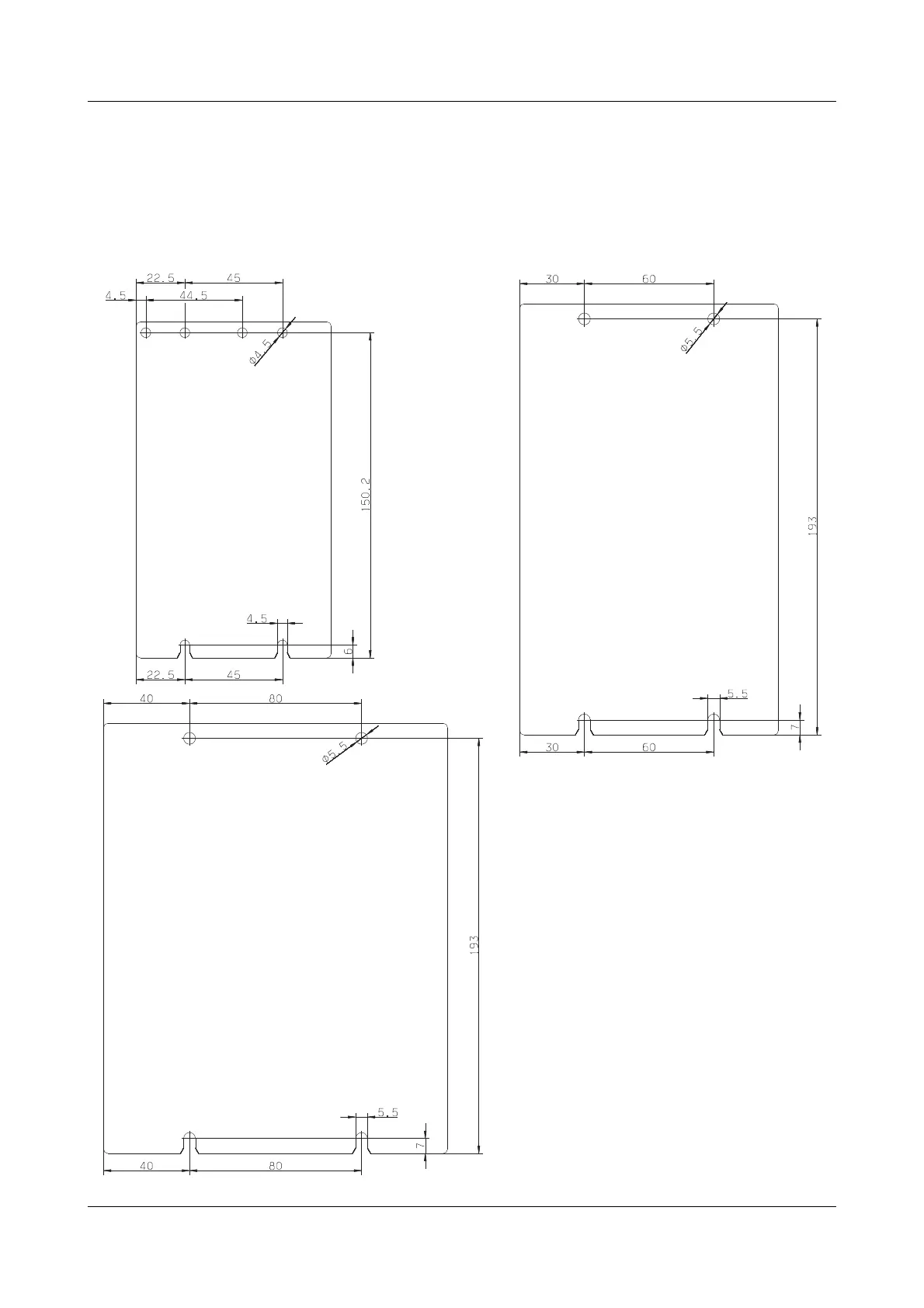

2.1.4 Wall mounting with screws (ex factory)
The power controllers with load current 20...100A are fastened to a fire resis-
tant switch cabinet wall with 2 screws. The left-hand hole is better accessible
in the top area.
The power controllers with load current 150 ... 250A are fastened with 4
screws.
TYA202
20A
TYA202 32A
TYA202 50A
