JUMO TYA 202 - Base Load

2011-07-01/00561073 [SCR Power Controller TYA202] 55
5 Configuration
Base load
0 ...100%
- of the maximum
load voltage,
- of the max. load
current
- of the power
Unit depending on the setting for cascade control and device
type:
- for voltage: 0 ... 115% of the max. load voltage, e.g. 264.5V
- for current: 0 ...100% of the max. load current, e.g. 20A)
- for power: 0 ...115% of the power 20A x 264.5V=5290W
v Chapter 1.3 „Order specifications“
k/ bold = factory setting

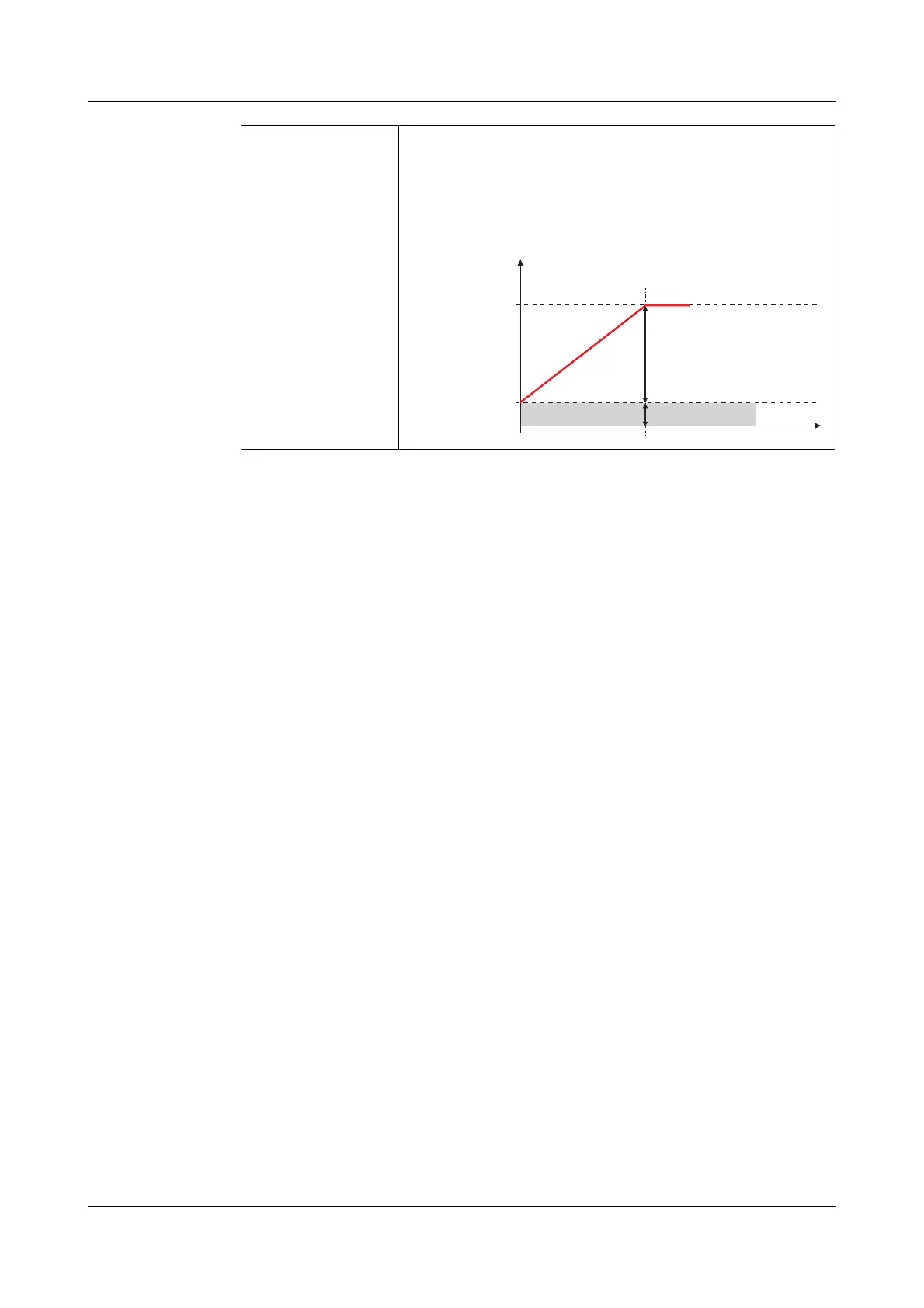

Control signal
P
Base load: 680 W
Maximum
Output level: 3680 W
0 mA
20 mA
3000W 0...20mA
Ⳏ
Base load
