5 Configuration
5.1 Configuration level
The configuration level contains the parameters for the configuration of the
power controller.
If parameters of this level are changed during operation, this causes the power
controller to be locked (inhibited). In this state it does not provide any power.
When the configuration level is exited, a restart (reset) is performed and the
power controller will then provide the required power again.
Access to this level can be inhibited with a password.
However, it is factory supplied without a password.
The configuration level is accessed from the measured value overview using
the following keys:
h From the measured value overview press the key
h Select Configuration level and press .

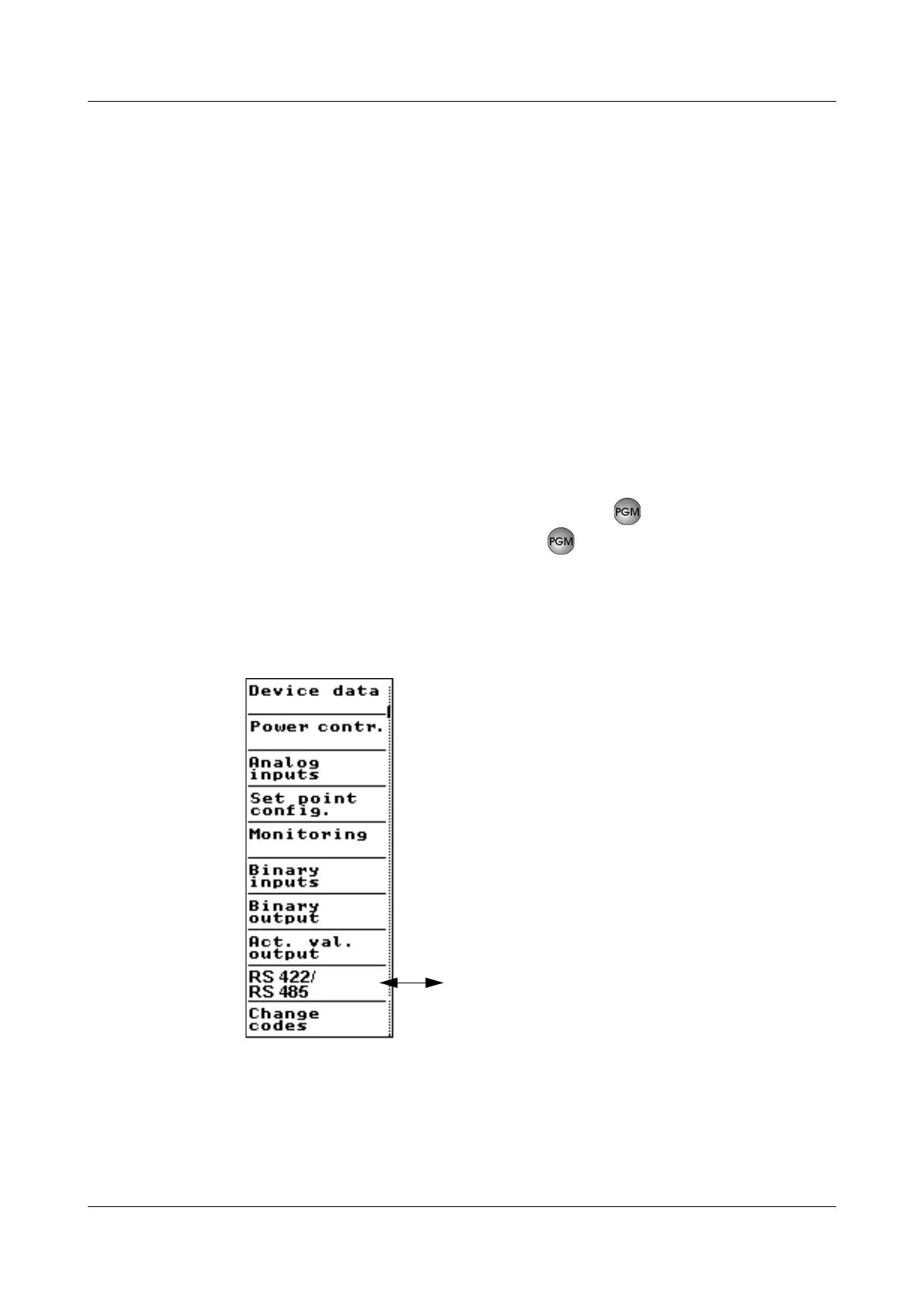

The parameters are assigned to the following groups that are explained in
detail in the form of tables in sub-chapters on the following pages.
Parameter
groups
All parameters for the maximum device extension level are listed in the
following tables. Depending on the device version (see rating plate) or
configuration, parameters that are not required are hidden.
or Profibus DP
v Chapter 5.1.1 „Device data“
v Chapter 5.1.2 „Power controller“
v Chapter 5.1.3 „Analog inputs“
etc.
