JUMO TYA 202 - 3 Electrical Connection; Plug-In Screw Terminals; Type 709062;8-0 X-20-XXX-XXX-XX-25 X

2011-07-01/00561073 [SCR Power Controller TYA202] 29
3 Electrical Connection
Dangerous volt-
age
h Disconnect the system from the electrical supply (all poles).
3.1 Plug-in screw terminals
Tools - Slotted screwdrivers, blade width 2, 3 and 5 mm
- Ring or open jaw spanner, width across flats 7, 10, 13 mm

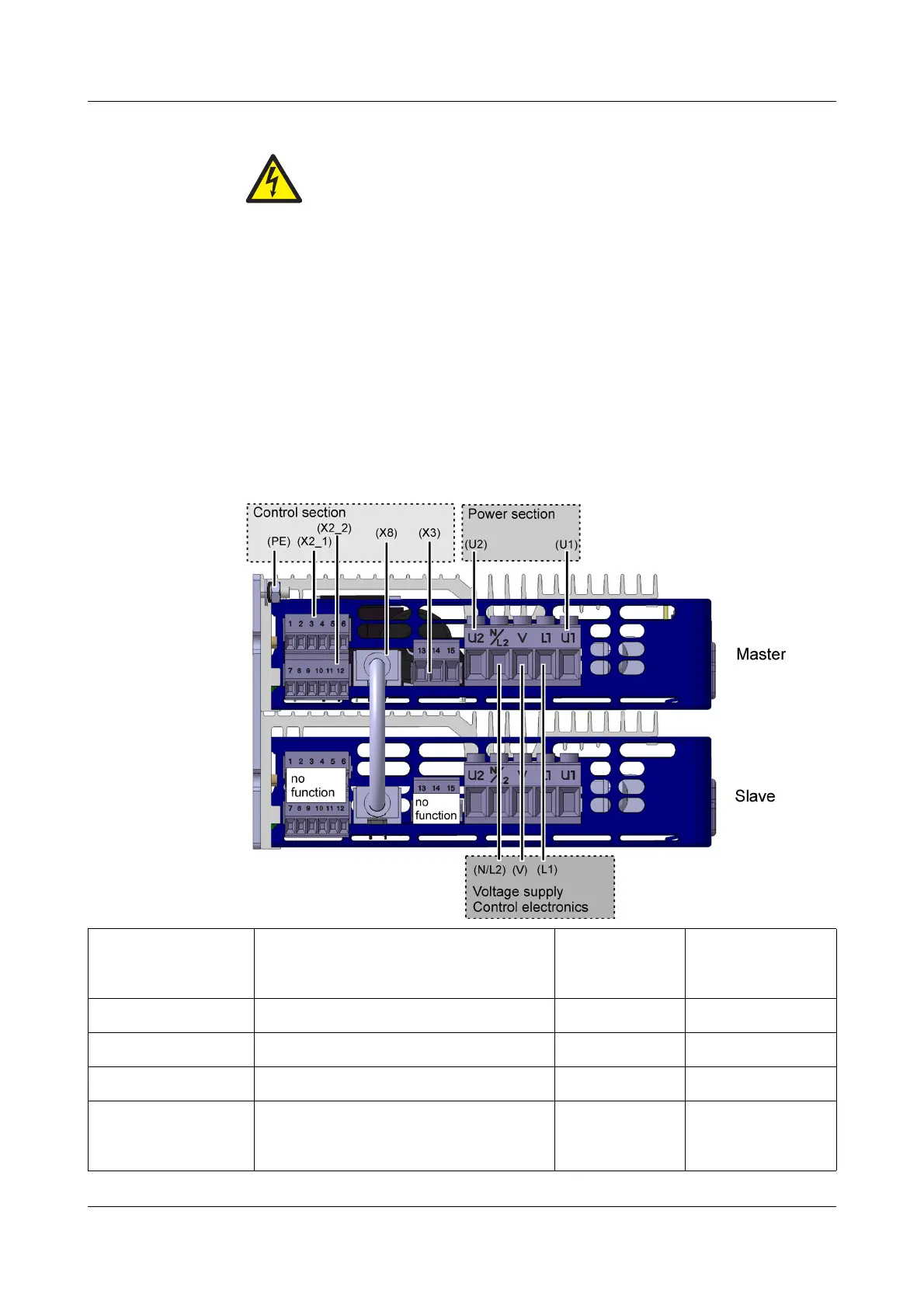

3.1.1 Type 709062/8-0X-20-XXX-XXX-XX-25X
The device with a load current of 20A is connected via plug-in screw terminals.
K
Only allow qualified electricians to carry out the electrical connection!
Dangerous voltage will cause electric shock if you come into contact
with live components.
Terminal Version Conductor
cross-section
Maximum
tightening
torque
X2_1 and X2_2 Slotted screws, blade width 2 mm
0.2-1.5mm
2
0.25 Nm
X3 Slotted screws, blade width 3 mm
0.5-2.5mm
2
0.5 Nm
U2, N/L2, V, L1, U1 Slotted screws, blade width 5 mm
0.5-6 mm
2
0.6 Nm
Ground terminal PE Threaded pin M4 with hexagon
nut,
width across flats 7mm
Cable lug with
Hole: 4 mm
3 Nm
