Table 32: EX9200-12QS Line Card (Connued)
Model Descripon Junos OS Release Required
NOTE: For the EX9200-12QS line card to be operaonal, you must install the EX9200-SF2 Switch Fabric module
(SF module) in the switch. See Switch Fabric Module in an EX9200 Switch and Installing an SF Module in an
EX9200 Switch .

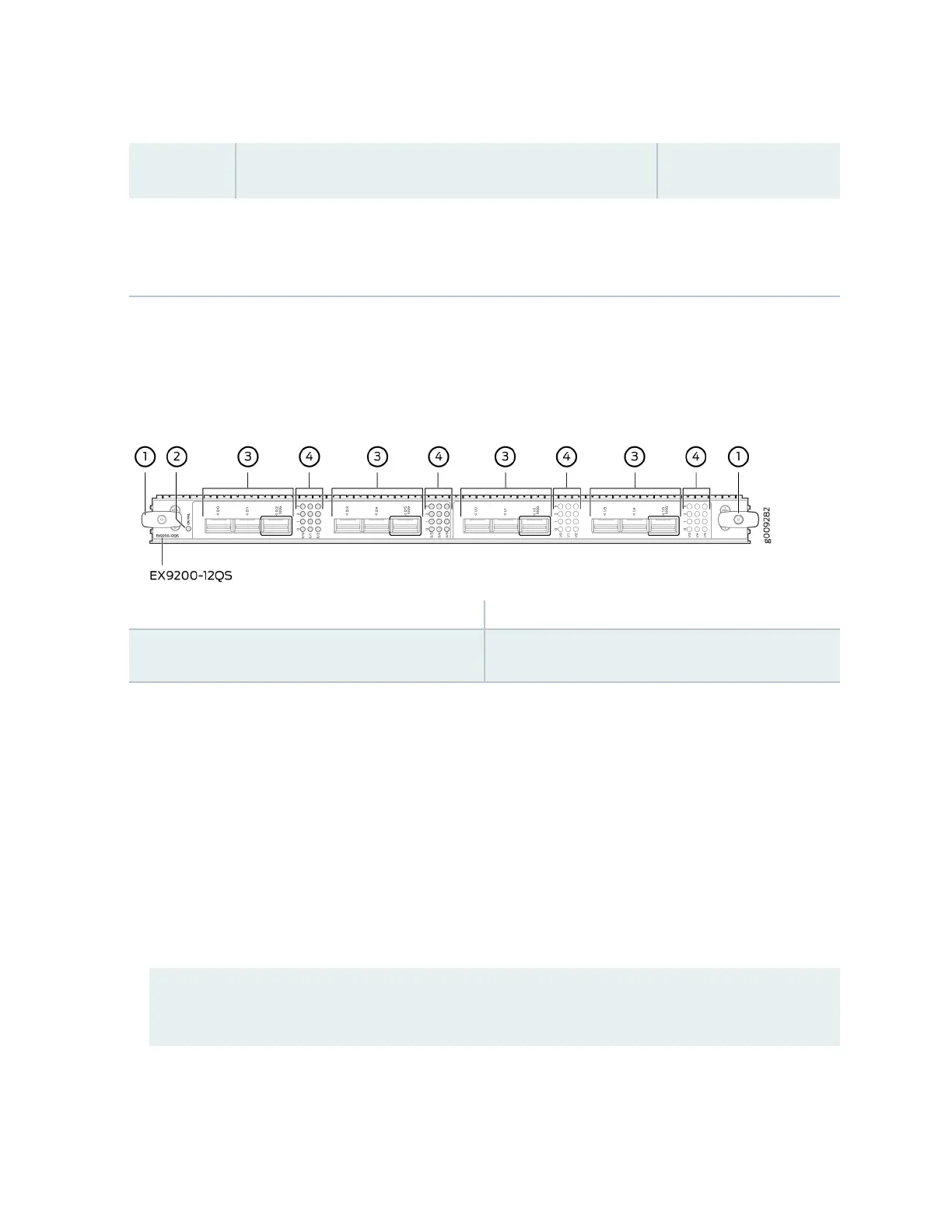

Figure 33 on page 95 shows the components of an EX9200-12QS line card.
Figure 33: EX9200-12QS Line Card
1—
Ejector lever
3—
10G/40G/100G Ethernet ports
2—
Line card LEDs
4—
Link/Acvity LEDs for the 10G/40G/100G
Ethernet ports
You can use the show version command to see the version of Junos OS for EX Series switches loaded on
the switch.
Line Card Components
The EX9200-12QS line card has:
• Twelve rate-selectable Gigabit Ethernet ports. All ports can operate at 10-Gbps and 40-Gbps speeds.
The ports are congured to operate at 10-Gbps speed by default. The ports labeled 0/2, 0/5, 1/2,
and 1/5 (see Figure 33 on page 95) can operate at 100-Gbps speed also. You can congure the port
speed by using the following command:
user@host# set chassis fpc fpc-slot pic pic-number pic-mode pic-speed number of ports number-
of-active-physical-ports
• You can congure a port to operate at 10-Gbps speed. If you congure the ports to operate at 10-
Gbps speed, each port operates as four 10-Gbps interfaces.
