Table 36: EX9200-40F Line Card
Model Descripon Junos OS Release Required
EX9200-40F A line card with 40 1-Gigabit Ethernet
ports, each of which can house 1-
gigabit small form-factor pluggable
(SFP) transceivers
12.3R2 or later
See
Figure 37 on page 104.

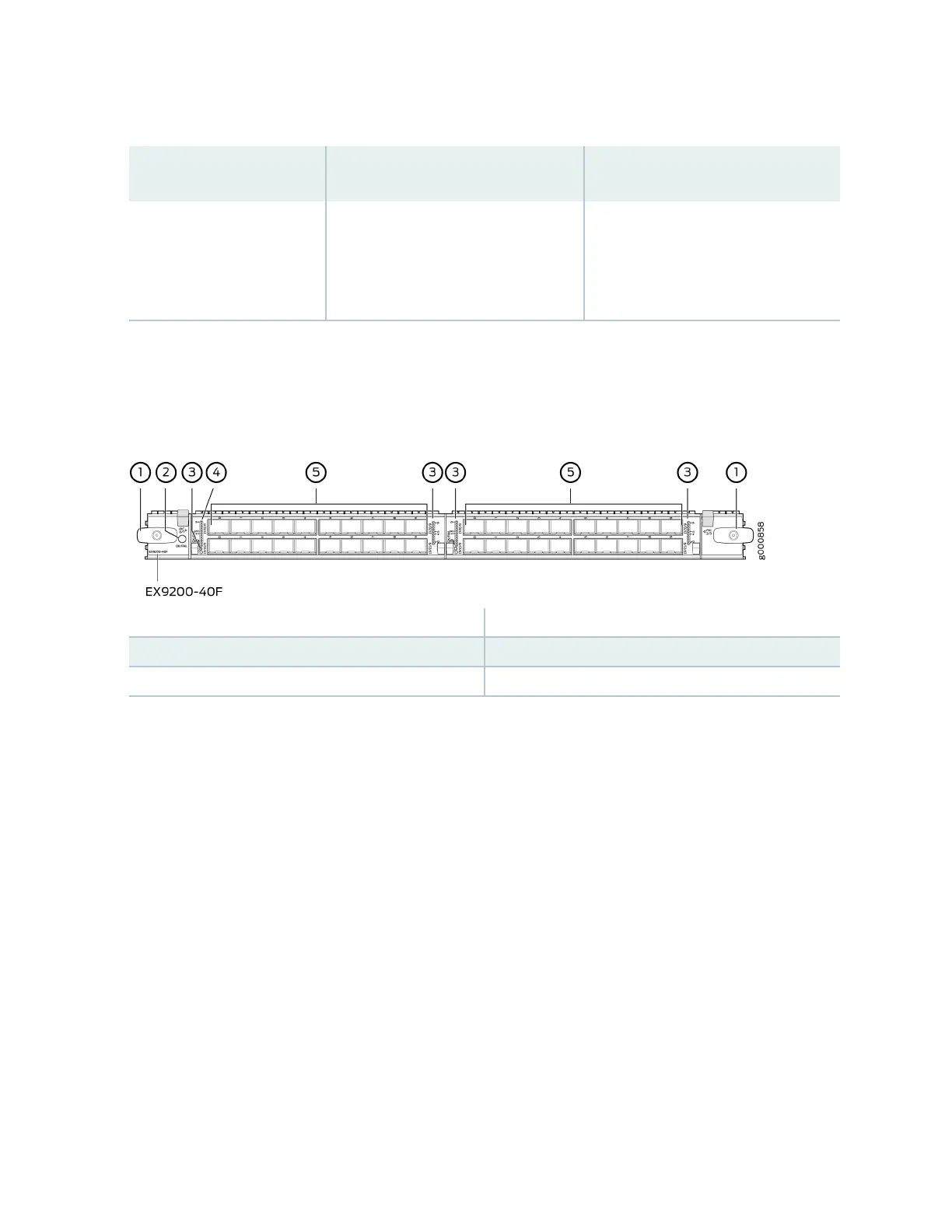

Figure 37: EX9200-40F Line Card
1—
Ejector lever
4—
LEDs for the ports
2—
Line card LED
5—
1-Gigabit Ethernet ports
3—
MIC LED
You can use the show version command to see the version of Junos OS for EX Series switches loaded on
the switch.
Line Card Components
The EX9200-40F line card has:
• 40 1-Gigabit Ethernet ports, each of which can house SFP transceivers
• 40 dust covers for the ports (shipped in an accessory bag)
• Line card LED—An LED labeled OK/FAIL, which indicates the status of the line card. See
Line Card
LED in an EX9200 Switch
.
• MIC LED—An LED labeled OK/FAIL on each MIC, which indicates the status of the MIC. See
Modular Interface Card LED in an EX9200 Switch
.
• LEDs for the ports—One LED on each port, the Link/Acvity LED, which indicates the link status and
acvity on the port. See
Network Port LEDs on Line Cards in an EX9200 Switch
.
104
