See Figure 38 on page 106.

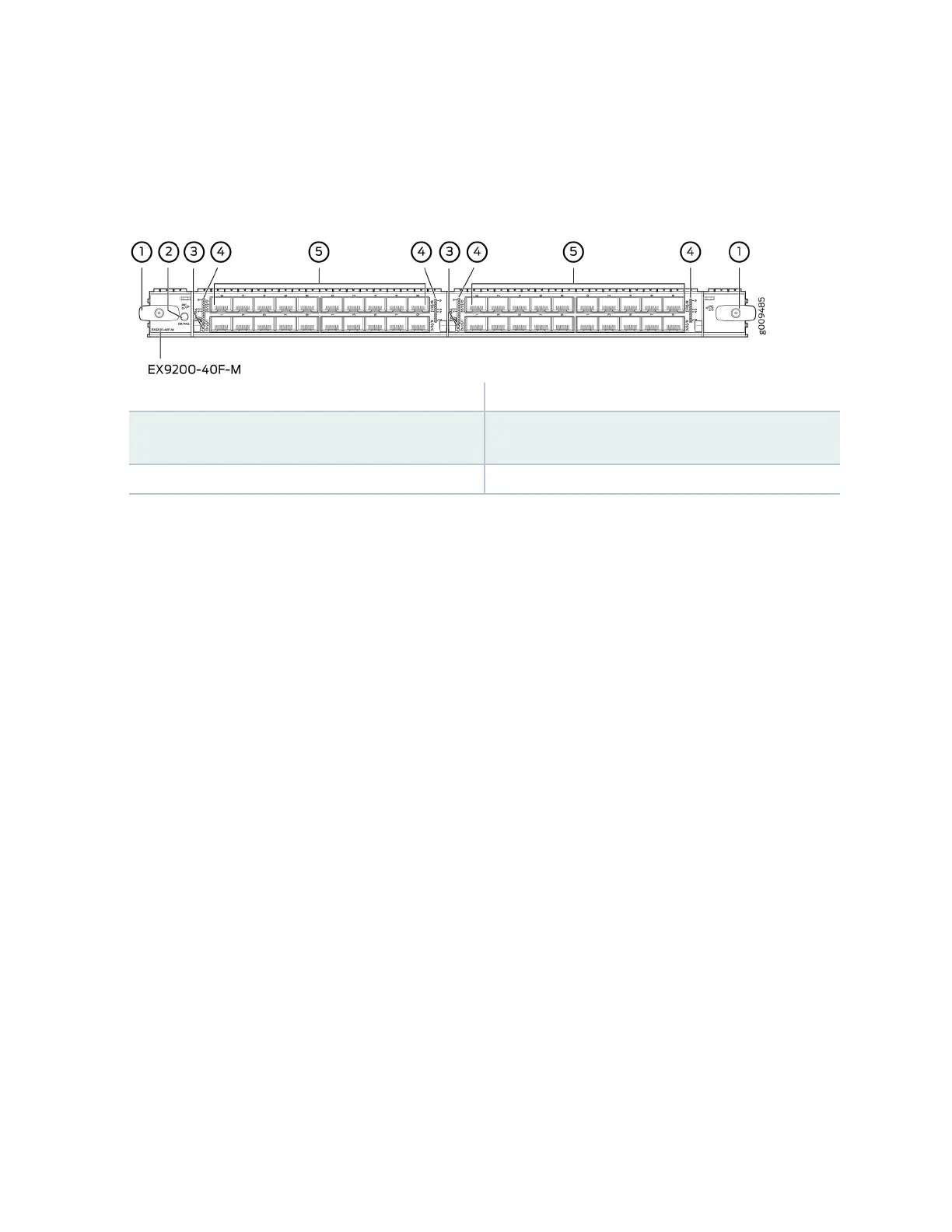

Figure 38: EX9200-40F-M Line Card
1—
Ejector lever
4—
LEDs for the ports
2—
Line card LED
5—
1-Gigabit Ethernet ports with MACsec
capability
3—
MIC LED
You can use the show version command to see the version of Junos OS for EX Series switches loaded on
the switch.
Line Card Components
The EX9200-40F-M line card has:
• 40 1-Gigabit Ethernet MACsec-capable ports, each of which can house SFP transceivers. These ports
support 1000BASE-T, 10/100/1000BASE-T, 100BASE-FX, 1000BASE-EX, 1000BASE-LH,
1000BASE-LX, and 1000BASE-SX transceivers.
• Line card LED—An LED labeled OK/FAIL, which indicates the status of the line card. See Line Card
LED in an EX9200 Switch .
• MIC LED—An LED labeled OK/FAIL on each MIC, which indicates the status of the MIC. See
Modular Interface Card LED in an EX9200 Switch .
• LEDs for the ports—One LED on each port, the Link/Acvity LED, which indicates the link status and
acvity on the port. See Network Port LEDs on Line Cards in an EX9200 Switch .
The ports labeled 0/0 through 0/9 form pic 0. The ports labeled 1/0 through 1/9 form pic 1. The ports
labeled 2/0 through 2/9 form pic 2. The ports labeled 3/0 through 3/9 form pic 3.
