10. While grasping the handle on the power supply faceplate with one hand, use the other hand to pull
the spring-loaded locking pin in the release lever away from the chassis and turn the release lever in
the counterclockwise direcon unl it stops. See Figure 69 on page 220.

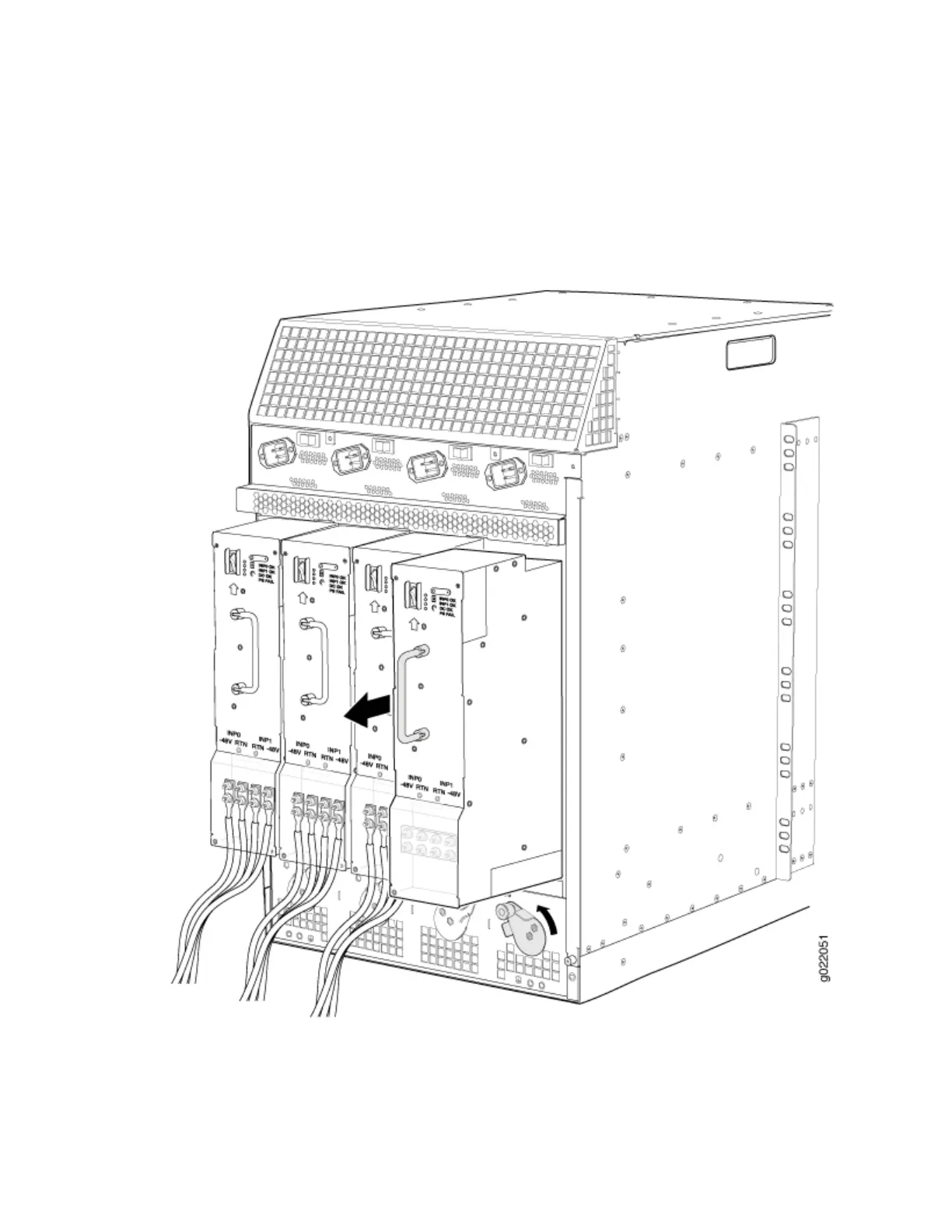

Figure 69: Removing a DC Power Supply from an EX9214 Switch
11. Let go of the locking pin in the release lever. Ensure that it is seated in the corresponding hole in
the chassis.
220
